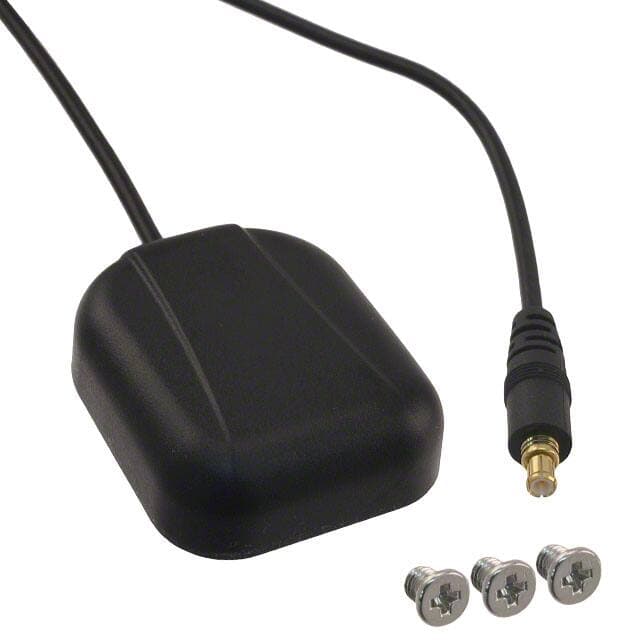

Linx Technologies Inc. ANT-GPS-SH-MCX

Manufacturer No:

ANT-GPS-SH-MCX

Manufacturer:

Linx Technologies Inc.

Package:

Description:

1 Bands Module UHF 1GHz~2GHz Magnetic, Chassis Mount MCX 1.575GHz 5dB Bulk 0.492 12.50mm GPS

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ANT-GPS-SH-MCX information

Linx Technologies Inc. ANT-GPS-SH-MCX technical specifications, attributes, parameters and parts with similar specifications to Linx Technologies Inc. ANT-GPS-SH-MCX.

Type
Parameter

Factory Lead Time
6 Weeks

Mount
Chassis Mount

Mounting Type
Magnetic, Chassis Mount

Packaging
Bulk

Series
SH

Published
2009

Feature
LNA

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
MCX

Applications
GPS

Frequency
1.57542GHz

Impedance
50Ohm

Cable Length
152.4mm

Bandwidth
10MHz

Gain
5dB

Frequency Range
1.570GHz~1.580GHz

RF Family/Standard
Navigation

Antenna Type
Module

VSWR
1.5

Number of Bands
1

Frequency Group
UHF 1GHz~2GHz

Frequency (Center/Band)
1.575GHz

Height
12.4968mm

Width
36.576mm

Height (Max)
0.492 12.50mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Linx Technologies Inc. ANT-GPS-SH-MCX.

Datasheets:

linxtechnologiesinc-antgpsshmcx-datasheets-0372.pdf

linx-antgpsshmcx-datasheets-1904.pdf

ANT-GPS-SH-MCX Overview

As it has a Magnetic, Chassis Mount value, it can be used for general RF Antennas.This is a Antenna RF from the SH series.There is a Bulk solid enclosure around the RF modulator.Because of its Chassis Mount, it is suitable for most RF ic.

ANT-GPS-SH-MCX Features

With Magnetic, Chassis Mount
SH series

ANT-GPS-SH-MCX Applications

There are a lot of Linx Technologies Inc.
ANT-GPS-SH-MCX RF Antennas applications.

Rectifiers
Inverters
Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
GPS
GLONASS
