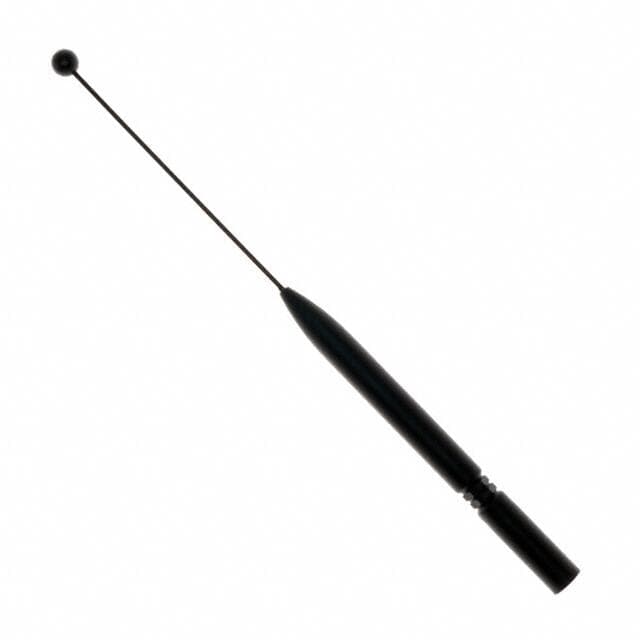

Linx Technologies Inc. ANT-ELE-S01-006

Manufacturer No:

ANT-ELE-S01-006

Manufacturer:

Linx Technologies Inc.

Package:

Description:

2 Bands Whip, Straight UHF 300MHz~1GHz UHF 1GHz~2GHz Magnetic M5 800MHz 850MHz 900MHz 1.7GHz 1.8GHz 0.5dBi, 3.7dBi Bulk

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ANT-ELE-S01-006 information

Linx Technologies Inc. ANT-ELE-S01-006 technical specifications, attributes, parameters and parts with similar specifications to Linx Technologies Inc. ANT-ELE-S01-006.

Type
Parameter

Factory Lead Time
6 Weeks

Mounting Type
Magnetic

Packaging
Bulk

Series
MAG

Published
2008

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
M5

Resistance
50Ohm

Frequency
960MHz

Impedance
50Ohm

Gain
0.5dBi, 3.7dBi

Frequency Range
824MHz~960MHz 1.71GHz~1.88GHz

Antenna Type
Whip, Straight

VSWR
1.5

Number of Bands
2

Frequency Group
UHF 300MHz~1GHz UHF 1GHz~2GHz

Frequency (Center/Band)
800MHz 850MHz 900MHz 1.7GHz 1.8GHz

Height
233.172mm

Length
262mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Linx Technologies Inc. ANT-ELE-S01-006.

Datasheets:

linxtechnologiesinc-anteles01006-datasheets-0850.pdf

ANT-ELE-S01-006 Overview

It is suitable for general RF Antennas when it is set to Magnetic.There is a Antenna RF in the MAG series.Bulk is the solid enclosure in which RF modulator is packaged.

ANT-ELE-S01-006 Features

With Magnetic
MAG series

ANT-ELE-S01-006 Applications

There are a lot of Linx Technologies Inc.
ANT-ELE-S01-006 RF Antennas applications.

Lightings
Rectifiers
Inverters
Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
GPS

User Guide
