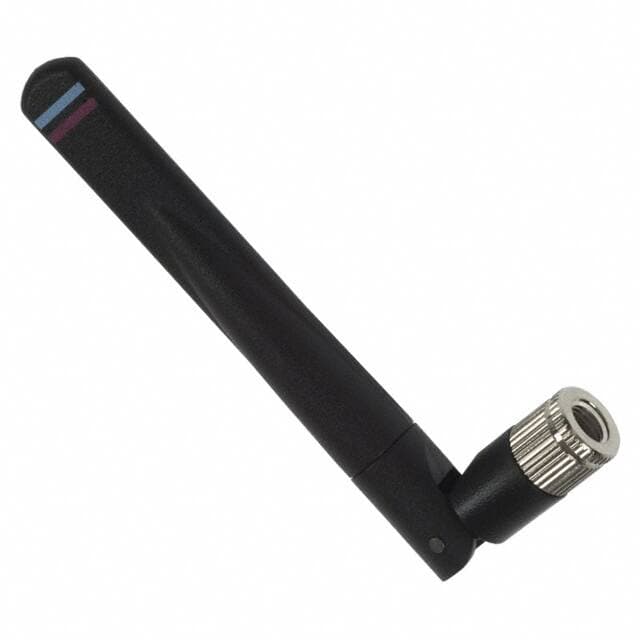

Linx Technologies Inc. ANT-DB1-RAF-RPS

Manufacturer No:

ANT-DB1-RAF-RPS

Manufacturer:

Linx Technologies Inc.

Package:

SMA

Description:

2 Bands Whip, Tilt UHF 2GHz~3GHz SHF f > 4GHz Connector Mount RP-SMA Male 2.4GHz 2.5GHz 5GHz 5.7GHz 5.8GHz 2.5dBi, 4.6dBi Tray Bluetooth, Thread, Wi-Fi, Zigbee?

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ANT-DB1-RAF-RPS information

Linx Technologies Inc. ANT-DB1-RAF-RPS technical specifications, attributes, parameters and parts with similar specifications to Linx Technologies Inc. ANT-DB1-RAF-RPS.

Type
Parameter

Factory Lead Time
6 Weeks

Mounting Type
Connector Mount

Package / Case
SMA

Packaging
Tray

Series
RAF

Published
2010

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
RP-SMA Male

Applications
Bluetooth, Thread, Wi-Fi, Zigbee?

Construction
COAXIAL

Frequency
5.8GHz

Operating Temperature (Max)
80°C

Operating Temperature (Min)
-40°C

Impedance
50Ohm

Bandwidth
875MHz

Gain
2.5dBi, 4.6dBi

Frequency Range
2.4GHz~2.483GHz 5.15GHz~5.825GHz

RF/Microwave Device Type
ANTENNA-OTHER

RF Family/Standard
802.15.4, Bluetooth, WiFi

Antenna Type
Whip, Tilt

VSWR
1.9

Number of Bands
2

Frequency (Center/Band)
2.4GHz 2.5GHz 5GHz 5.7GHz 5.8GHz

Omnidirectional
YES

Diameter
10.7mm

Height
104.902mm

Length
104.902mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Linx Technologies Inc. ANT-DB1-RAF-RPS.

Datasheets:

linxtechnologiesinc-antdb1rafrps-datasheets-2717.pdf

ANT-DB1-RAF-RPS Overview

RF Antennas can be generalized using Connector Mount.An Antenna RF from the series RAF.An enclosure of Tray is used to package the RF modulator.The RF ic comes in SMA packaging, which makes it convenient to ship overseas.

ANT-DB1-RAF-RPS Features

With Connector Mount
RAF series

ANT-DB1-RAF-RPS Applications

There are a lot of Linx Technologies Inc.
ANT-DB1-RAF-RPS RF Antennas applications.

Inverters
Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
GPS
GLONASS
BeiDou
