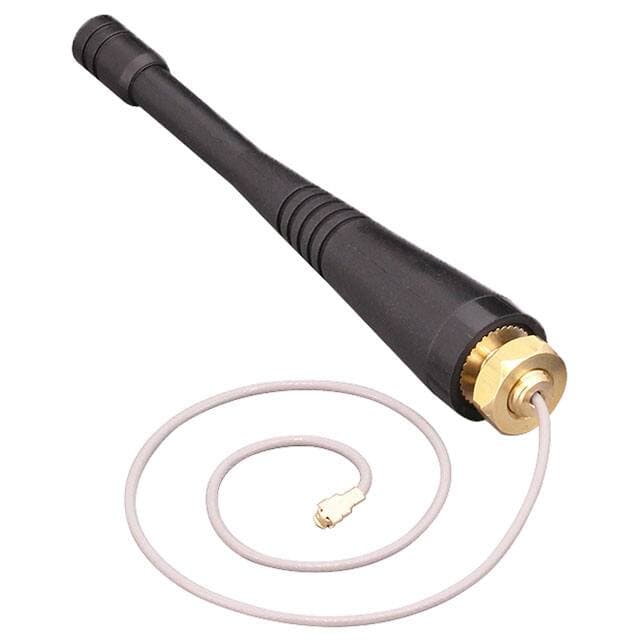

Linx Technologies Inc. ANT-B20-PW-QW-UFL

Manufacturer No:

ANT-B20-PW-QW-UFL

Manufacturer:

Package:

Description:

1 Bands Whip, Straight UHF 300MHz~1GHz Panel Mount U.FL (UMCC), IPEX MHF1 826MHz 1.6dBi 3.531 89.70mm Cellular, GSM, LTE, NB-IoT, UMTS

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ANT-B20-PW-QW-UFL information

Linx Technologies Inc. ANT-B20-PW-QW-UFL technical specifications, attributes, parameters and parts with similar specifications to Linx Technologies Inc. ANT-B20-PW-QW-UFL.

Type
Parameter

Factory Lead Time
12 Weeks

Mounting Type
Panel Mount

Series
PW

Feature
Cable - 216mm, O-Ring Compatible

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
U.FL (UMCC), IPEX MHF1

Applications
Cellular, GSM, LTE, NB-IoT, UMTS

Power - Max
10W

Gain
1.6dBi

Frequency Range
790MHz~870MHz

RF Family/Standard
Cellular

Antenna Type
Whip, Straight

VSWR
2.1

Number of Bands
1

Frequency Group
UHF 300MHz~1GHz

Frequency (Center/Band)
826MHz

Height (Max)
3.531 89.70mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Linx Technologies Inc. ANT-B20-PW-QW-UFL.

Datasheets:

linxtechnologiesinc-antb20pwqwufl-datasheets-1653.pdf

ANT-B20-PW-QW-UFL Overview

The Panel Mount makes it ideal for general RF Antennas.The Antenna RF is from the PW line.

ANT-B20-PW-QW-UFL Features

With Panel Mount
PW series

ANT-B20-PW-QW-UFL Applications

There are a lot of Linx Technologies Inc.
ANT-B20-PW-QW-UFL RF Antennas applications.

Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
GPS
GLONASS
BeiDou
Galileo
