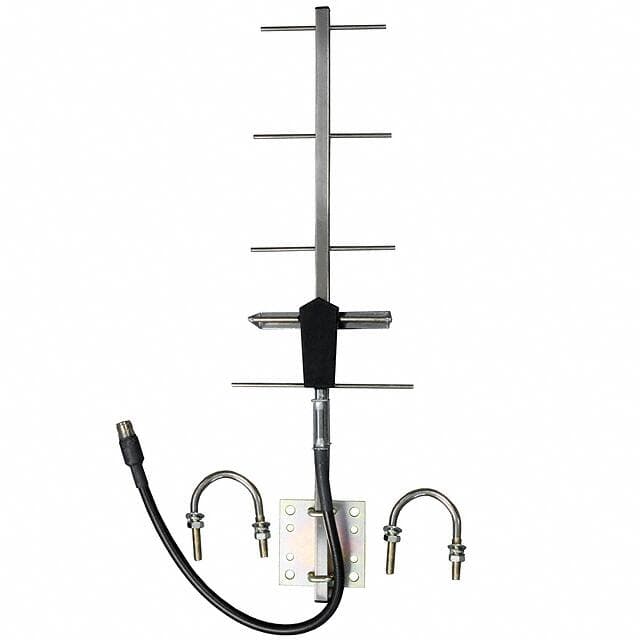

Linx Technologies Inc. ANT-916-YG5-N

Manufacturer No:

ANT-916-YG5-N

Manufacturer:

Linx Technologies Inc.

Package:

Description:

1 Bands Yagi, 5-Element UHF 300MHz~1GHz Bracket Mount N Type Female 916MHz 9dBi Bulk 21.535 547.00mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ANT-916-YG5-N information

Linx Technologies Inc. ANT-916-YG5-N technical specifications, attributes, parameters and parts with similar specifications to Linx Technologies Inc. ANT-916-YG5-N.

Type
Parameter

Mount
Brackets

Mounting Type
Bracket Mount

Packaging
Bulk

Series
YG

Published
2003

Feature
Cable - 500mm

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
N Type Female

Power Rating
100W

Max Power Dissipation
100W

Frequency
916MHz

Impedance
50Ohm

Cable Length
230.124mm

Power - Max
100W

Bandwidth
70MHz

Gain
9dBi

Frequency Range
881MHz~951MHz

Antenna Type
Yagi, 5-Element

VSWR
1.5

Number of Bands
1

Frequency Group
UHF 300MHz~1GHz

Frequency (Center/Band)
916MHz

Height
546.989mm

Height (Max)
21.535 547.00mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Linx Technologies Inc. ANT-916-YG5-N.

Datasheets:

linxtechnologiesinc-ant916yg5n-datasheets-0057.pdf

ANT-916-YG5-N Overview

RF Antennas can be generalized using Bracket Mount.An Antenna RF from the series YG.An enclosure of Bulk is used to package the RF modulator.As it has a Brackets, it's suitable for most RF ic designs.

ANT-916-YG5-N Features

With Bracket Mount
YG series

ANT-916-YG5-N Applications

There are a lot of Linx Technologies Inc.
ANT-916-YG5-N RF Antennas applications.

Inverters
Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
GPS
GLONASS
BeiDou
