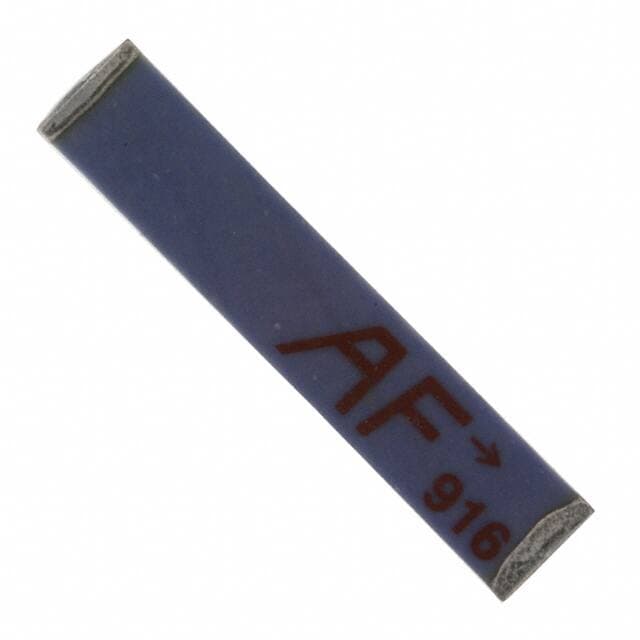

Linx Technologies Inc. ANT-916-CHP-T

Manufacturer No:

ANT-916-CHP-T

Manufacturer:

Linx Technologies Inc.

Package:

Ceramic

Description:

1 Bands Chip UHF 300MHz~1GHz Surface Mount Solder 915MHz 0.5dBi Tape & Reel (TR) ISM, LoRa, Sensor Networks, SigFox

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ANT-916-CHP-T information

Linx Technologies Inc. ANT-916-CHP-T technical specifications, attributes, parameters and parts with similar specifications to Linx Technologies Inc. ANT-916-CHP-T.

Type
Parameter

Factory Lead Time
9 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
Ceramic

Packaging
Tape & Reel (TR)

Series
CHP

Published
2010

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Applications
ISM, LoRa, Sensor Networks, SigFox

Additional Feature
HIGH RELIABILITY

Max Power Dissipation
3W

Construction
COMPONENT

Frequency
916MHz

Polarization
LINEAR

Impedance
50Ohm

Bandwidth
180MHz

Gain
0.5dBi

Frequency Range
911MHz~921MHz

RF/Microwave Device Type
ANTENNA-OTHER

RF Family/Standard
General ISM

VSWR
2

Number of Bands
1

Frequency Group
UHF 300MHz~1GHz

Frequency (Center/Band)
915MHz

Omnidirectional
YES

Height
1.7018mm

Length
16.002mm

Width
3.048mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Linx Technologies Inc. ANT-916-CHP-T.

Datasheets:

linxtechnologiesinc-aek916chp-datasheets-3336.pdf

ANT-916-CHP-T Overview

As it has a Surface Mount value, it can be used for general RF Antennas.This is a Antenna RF from the CHP series.There is a Tape & Reel (TR) solid enclosure around the RF modulator.Because of its Surface Mount, it is suitable for most RF ic.This RF ic is conveniently packaged in Ceramic, making it easy to ship abroad.It is estimated that the minimal operating temperature of the RF Antennas is -40°C.Temperatures higher than 85°C are not recommended for operation of the RF Antennas.

ANT-916-CHP-T Features

With Surface Mount
CHP series
Above 85°C degrees Celsius

ANT-916-CHP-T Applications

There are a lot of Linx Technologies Inc.
ANT-916-CHP-T RF Antennas applications.

Rectifiers
Inverters
Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
GPS
GLONASS
