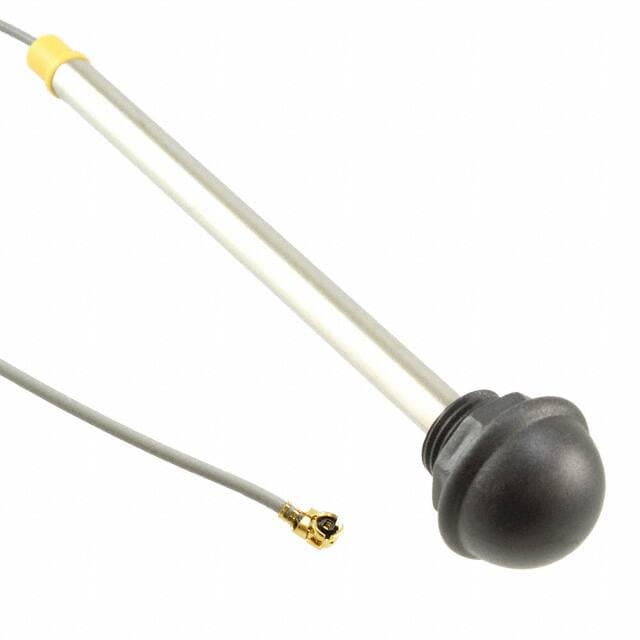

Linx Technologies Inc. ANT-868-WRT-UFL

Manufacturer No:

ANT-868-WRT-UFL

Manufacturer:

Linx Technologies Inc.

Package:

SMA

Description:

1 Bands Dome UHF 300MHz~1GHz Panel Mount U.FL (UMCC), IPEX MHF1 800MHz 850MHz 1.5dBi Bulk ISM, LoRa, Sensor Networks, SigFox

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ANT-868-WRT-UFL information

Linx Technologies Inc. ANT-868-WRT-UFL technical specifications, attributes, parameters and parts with similar specifications to Linx Technologies Inc. ANT-868-WRT-UFL.

Type
Parameter

Factory Lead Time
6 Weeks

Mount
Panel

Mounting Type
Panel Mount

Package / Case
SMA

Packaging
Bulk

Series
WRT

Published
2013

Feature
Cable - 216mm

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
U.FL (UMCC), IPEX MHF1

Applications
ISM, LoRa, Sensor Networks, SigFox

Frequency
868MHz

Impedance
50Ohm

Cable Length
8.5mm

Gain
1.5dBi

Frequency Range
855MHz~880MHz

RF Family/Standard
General ISM

Antenna Type
Dome

VSWR
1.9

Number of Bands
1

Frequency Group
UHF 300MHz~1GHz

Frequency (Center/Band)
800MHz 850MHz

Height
10.9982mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Linx Technologies Inc. ANT-868-WRT-UFL.

Datasheets:

linxtechnologiesinc-ant868wrtrps-datasheets-1900.pdf

linx-ant868wrtufl-datasheets-1441.pdf

linx-ant868wrtufl-datasheets-1442.pdf

ANT-868-WRT-UFL Overview

A generalization of RF Antennas can be made using Panel Mount.There are several Antenna RFs in the WRT series.Packaging is solid wRF modulatorh a Bulk enclosure.The Panel makes it suitable for most RF ics.Shipped in SMA, the RF ic is easy to ship overseas.

ANT-868-WRT-UFL Features

With Panel Mount
WRT series

ANT-868-WRT-UFL Applications

There are a lot of Linx Technologies Inc.
ANT-868-WRT-UFL RF Antennas applications.

Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
GPS
GLONASS
BeiDou
Galileo
