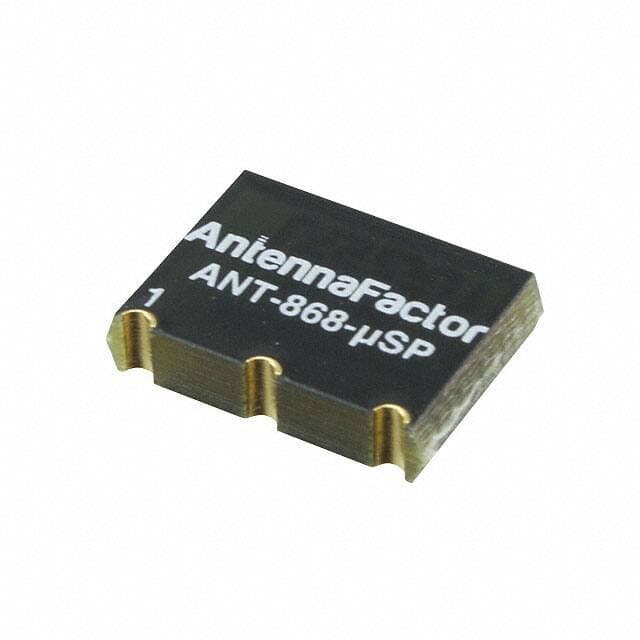

Linx Technologies Inc. ANT-868-USP

Manufacturer No:

ANT-868-USP

Manufacturer:

Linx Technologies Inc.

Package:

SMD/SMT

Description:

1 Bands Chip UHF 300MHz~1GHz Surface Mount Solder 868MHz 0.2dBi Tube 0.100 2.54mm ISM, LoRa, Sensor Networks, SigFox

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ANT-868-USP information

Linx Technologies Inc. ANT-868-USP technical specifications, attributes, parameters and parts with similar specifications to Linx Technologies Inc. ANT-868-USP.

Type
Parameter

Factory Lead Time
6 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
SMD/SMT

Packaging
Tube

Series
microSplatch?

Published
2012

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Applications
ISM, LoRa, Sensor Networks, SigFox

Frequency
868MHz

Lead Pitch
5.1mm

Impedance
50Ohm

Bandwidth
20MHz

Gain
0.2dBi

Frequency Range
859MHz~877MHz

RF Family/Standard
General ISM

Antenna Type
Chip

VSWR
1.9

Number of Bands
1

Frequency Group
UHF 300MHz~1GHz

Height
2.54mm

Height (Max)
0.100 2.54mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Linx Technologies Inc. ANT-868-USP.

Datasheets:

linxtechnologiesinc-aek868usp-datasheets-3421.pdf

linx-ant868usp-datasheets-1492.pdf

ANT-868-USP Overview

Surface Mount makes it suitable for general RF Antennas.It is a Antenna RF from the microSplatch? series.The RF modulator is packaged in Tube solid enclosure.Its Surface Mount makes it qualified for most RF ic designs.Packed in SMD/SMT, the RF ic is convenient for shipping overseas.According to test statistics, the minimal operating temeprature of the RF Antennas would be -40°C.The RF Antennas should not operate in an environment where the temperature is higher than 85°C.

ANT-868-USP Features

With Surface Mount
microSplatch? series
Above 85°C degrees Celsius

ANT-868-USP Applications

There are a lot of Linx Technologies Inc.
ANT-868-USP RF Antennas applications.

Lightning strikes
Solar flares
Static electricity
Cosmic noise
Generators
Lightings
Rectifiers
Inverters
Satellites
Transmission
