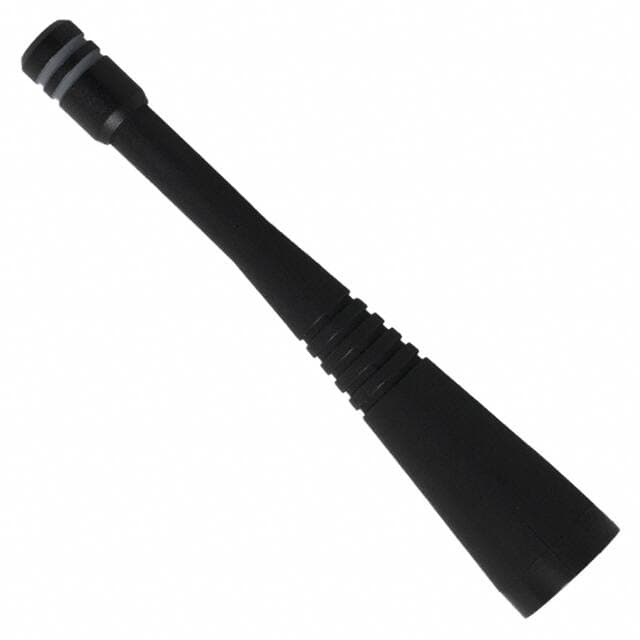

Linx Technologies Inc. ANT-868-CW-QW

Manufacturer No:

ANT-868-CW-QW

Manufacturer:

Package:

Description:

1 Bands Whip, Straight UHF 300MHz~1GHz Connector Mount RP-SMA Male 700MHz 750MHz 800MHz 900MHz 950MHz 1.6dBi Tray ISM, LoRa, Sensor Networks, SigFox

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ANT-868-CW-QW information

Linx Technologies Inc. ANT-868-CW-QW technical specifications, attributes, parameters and parts with similar specifications to Linx Technologies Inc. ANT-868-CW-QW.

Type
Parameter

Factory Lead Time
6 Weeks

Mounting Type
Connector Mount

Packaging
Tray

Series
CW

Published
2010

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
RP-SMA Male

Applications
ISM, LoRa, Sensor Networks, SigFox

Frequency
868MHz

Impedance
50Ohm

Bandwidth
80MHz

Gain
1.6dBi

Frequency Range
750MHz~950MHz

RF Family/Standard
General ISM

Antenna Type
Whip, Straight

VSWR
1.9

Number of Bands
1

Frequency Group
UHF 300MHz~1GHz

Frequency (Center/Band)
700MHz 750MHz 800MHz 900MHz 950MHz

Diameter
14.5mm

Height
83.9978mm

Length
82mm

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Linx Technologies Inc. ANT-868-CW-QW.

Datasheets:

linxtechnologiesinc-ant868cwqw-datasheets-1072.pdf

ANT-868-CW-QW Overview

The Connector Mount value makes it suitable for general RF Antennas.From the CW series, it's a Antenna RF.A solid enclosure of Tray surrounds RF modulator.

ANT-868-CW-QW Features

With Connector Mount
CW series

ANT-868-CW-QW Applications

There are a lot of Linx Technologies Inc.
ANT-868-CW-QW RF Antennas applications.

Solar flares
Static electricity
Cosmic noise
Generators
Lightings
Rectifiers
Inverters
Satellites
Transmission
Cellphones

User Guide
