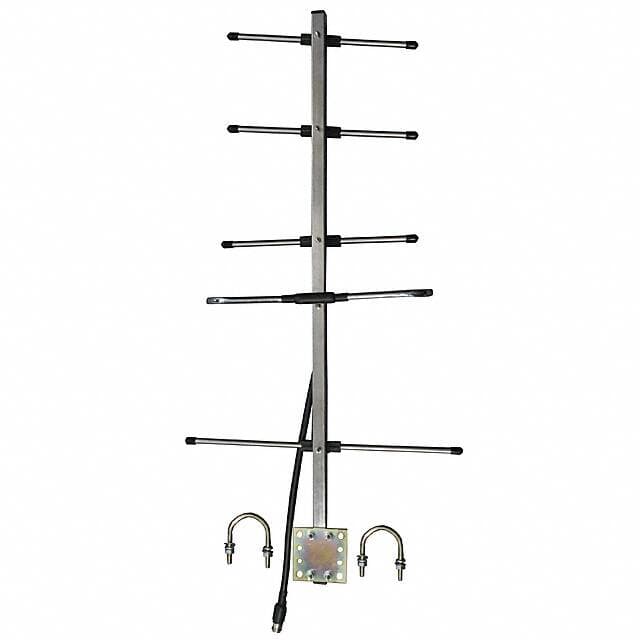

Linx Technologies Inc. ANT-418-YG5-N

Manufacturer No:

ANT-418-YG5-N

Manufacturer:

Linx Technologies Inc.

Package:

Description:

1 Bands Yagi, 5-Element UHF 300MHz~1GHz Bracket Mount N Type Female 9dBi Bulk

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ANT-418-YG5-N information

Linx Technologies Inc. ANT-418-YG5-N technical specifications, attributes, parameters and parts with similar specifications to Linx Technologies Inc. ANT-418-YG5-N.

Type
Parameter

Mount
Brackets

Mounting Type
Bracket Mount

Packaging
Bulk

Series
YG

Published
2002

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
N Type Female

Power Rating
100W

Max Power Dissipation
100W

Frequency
418MHz

Impedance
50Ohm

Cable Length
234.95mm

Bandwidth
42MHz

Gain
9dBi

Frequency Range
378MHz~458MHz

Antenna Type
Yagi, 5-Element

VSWR
1.5

Number of Bands
1

Frequency Group
UHF 300MHz~1GHz

Height
799.9984mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Linx Technologies Inc. ANT-418-YG5-N.

Datasheets:

linxtechnologiesinc-ant418yg5n-datasheets-0102.pdf

ANT-418-YG5-N Overview

A generalization of RF Antennas can be made using Bracket Mount.There are several Antenna RFs in the YG series.Packaging is solid wRF modulatorh a Bulk enclosure.The Brackets makes it suitable for most RF ics.

ANT-418-YG5-N Features

With Bracket Mount
YG series

ANT-418-YG5-N Applications

There are a lot of Linx Technologies Inc.
ANT-418-YG5-N RF Antennas applications.

Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
GPS
GLONASS
BeiDou
Galileo
