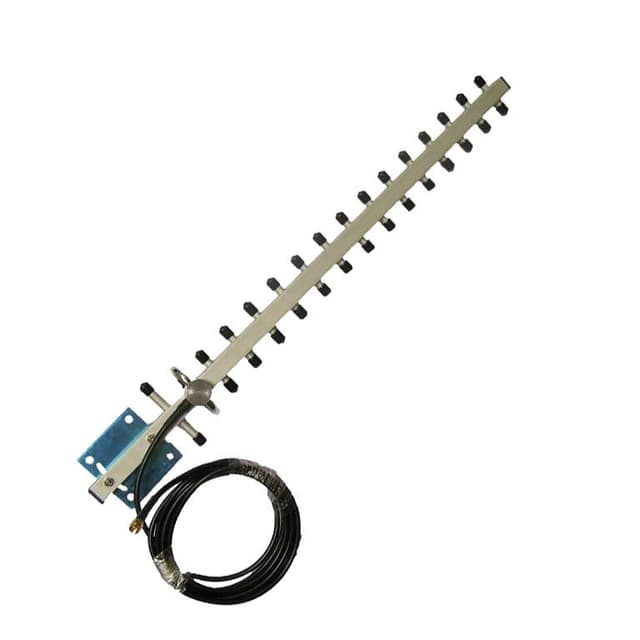

RF Solutions ANT-2YAG16

Manufacturer No:

ANT-2YAG16

Manufacturer:

RF Solutions

Package:

SMA

Description:

1 Bands Yagi, 15-Element UHF 2GHz~3GHz Bracket Mount SMA Male 2.4GHz 16dBi Bulk WLAN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ANT-2YAG16 information

RF Solutions ANT-2YAG16 technical specifications, attributes, parameters and parts with similar specifications to RF Solutions ANT-2YAG16.

Type
Parameter

Factory Lead Time
12 Weeks

Mount
Brackets

Mounting Type
Bracket Mount

Package / Case
SMA

Packaging
Bulk

Published
2006

Feature
Cable - 2m

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
SMA Male

Applications
WLAN

Frequency
2.483GHz

Gain
16dBi

Frequency Range
2.4GHz~2.483GHz

RF Family/Standard
WiFi

Antenna Type
Yagi, 15-Element

VSWR
2

Number of Bands
1

Frequency Group
UHF 2GHz~3GHz

Frequency (Center/Band)
2.4GHz

Height
550.0116mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for RF Solutions ANT-2YAG16.

Datasheets:

rfsolutions-ant2yag16-datasheets-8873.pdf

rfsolutions-ant2yag16-datasheets-1360.pdf

ANT-2YAG16 Overview

RF Antennas can be generalized using Bracket Mount.An enclosure of Bulk is used to package the RF modulator.As it has a Brackets, it's suitable for most RF ic designs.The RF ic comes in SMA packaging, which makes it convenient to ship overseas.

ANT-2YAG16 Features

With Bracket Mount

ANT-2YAG16 Applications

There are a lot of RF Solutions
ANT-2YAG16 RF Antennas applications.

Inverters
Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
GPS
GLONASS
BeiDou
