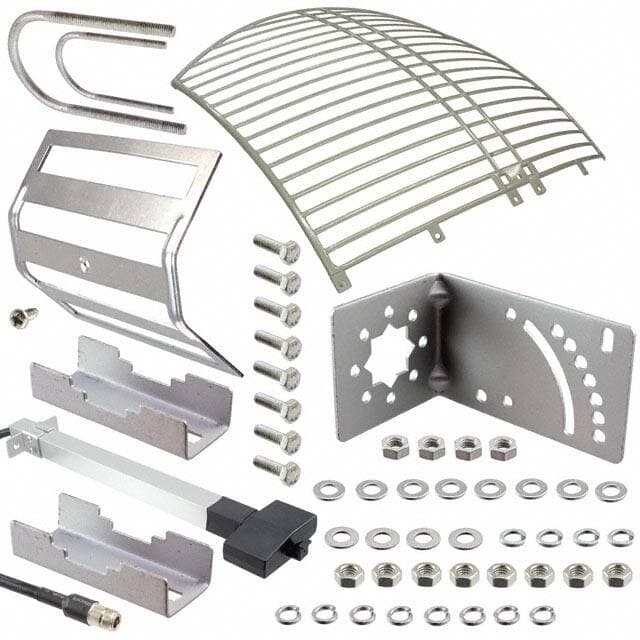

RF Solutions ANT-24GRID24

Manufacturer No:

ANT-24GRID24

Manufacturer:

RF Solutions

Package:

Description:

1 Bands Parabolic Grid UHF 2GHz~3GHz Bracket Mount N Type Female 2.4GHz 24dB Bulk WLAN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ANT-24GRID24 information

RF Solutions ANT-24GRID24 technical specifications, attributes, parameters and parts with similar specifications to RF Solutions ANT-24GRID24.

Type
Parameter

Factory Lead Time
9 Weeks

Mount
Brackets

Mounting Type
Bracket Mount

Packaging
Bulk

Published
2009

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
N Type Female

Applications
WLAN

Max Power Dissipation
50W

Gain
24dB

Frequency Range
2.4GHz~2.5GHz

RF Family/Standard
WiFi

Antenna Type
Parabolic Grid

VSWR
2

Number of Bands
1

Frequency Group
UHF 2GHz~3GHz

Frequency (Center/Band)
2.4GHz

Height
399.9992mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for RF Solutions ANT-24GRID24.

Datasheets:

rfsolutions-ant24grid24-datasheets-4241.pdf

ANT-24GRID24 Overview

The Bracket Mount makes it ideal for general RF Antennas.Packaged in solid enclosures, this RF modulator has a Bulk rating.Having a Brackets makes it suitable for most RF ic designs.

ANT-24GRID24 Features

With Bracket Mount

ANT-24GRID24 Applications

There are a lot of RF Solutions
ANT-24GRID24 RF Antennas applications.

Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
GPS
GLONASS
BeiDou
Galileo
