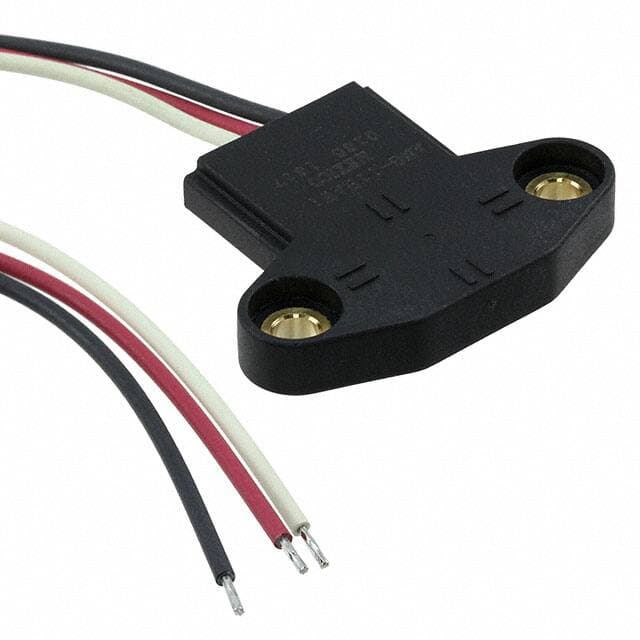

ZF Electronics ANG-11HAW1

Manufacturer No:

ANG-11HAW1

Manufacturer:

ZF Electronics

Package:

Box with Wire Leads

Description:

ANG Series For Measuring Angle Wire Leads External Magnet, Not Included -40°C~140°C Analog Voltage 5V ±1% 0° ~ 360°, Continuous Counterclockwise Increase Box with Wire Leads

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ANG-11HAW1 information

ZF Electronics ANG-11HAW1 technical specifications, attributes, parameters and parts with similar specifications to ZF Electronics ANG-11HAW1.

Type
Parameter

Factory Lead Time
18 Weeks

Mounting Type
Chassis Mount

Package / Case
Box with Wire Leads

Operating Temperature
-40°C~140°C

Packaging
Bulk

Series
ANG

Published
2016

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Technology
Hall Effect

Voltage - Supply
5V

Output
Analog Voltage

Termination Style
Wire Leads

Actuator Type
External Magnet, Not Included

Output Voltage
500mV

Min Output Voltage
500mV

Linearity
±1%

Max Supply Voltage (DC)
5.5V

Min Supply Voltage (DC)
4.5V

For Measuring
Angle

Output Signal
Counterclockwise Increase

Rotation Angle - Electrical, Mechanical
0° ~ 360°, Continuous

REACH SVHC
Unknown

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ZF Electronics ANG-11HAW1.

Datasheets:

zfelectronics-ang21haw1-datasheets-8547.pdf

ANG-11HAW1 Overview

In order to protect the linear position measuring sensors from damage, they are packaged in Box with Wire Leads packages. The Bulk package houses this electronic component. A DC circuit cannot supply more voltage than 5.5V to a linear position measuring sensor. In the DC circuit, however, the linear position measuring sensor cannot apply voltage below 4.5V. A linear position measuring sensor cannot produce a voltage below 500mV. 500mV voltage is required for this angle position measuring sensor to function properly.

ANG-11HAW1 Features

Supply Voltage: 5V
Operating Temperature: -40°C~140°C
ANG Series
Package / Case: Box with Wire Leads
Mounting Type: Chassis Mount

ANG-11HAW1 Applications

There are a lot of ZF Electronics
ANG-11HAW1 Angle & Linear Position Measuring Sensors applications.

Dishwasher control systems
Automotive temperature range
Robotic joint position detection
Industrial motor position control
Medical robots and fitness equipment
Absolute Rotary Position Sensor
Steering Wheel Position Sensor
Pedal Position Sensor
Motor-shaft Position Sensor
Throttle Position Sensor
