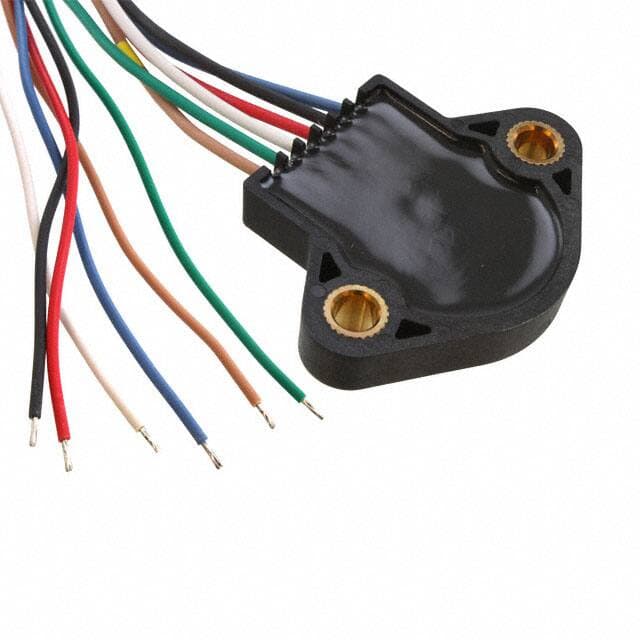

ZF Electronics AN920036
Manufacturer No:
AN920036
Manufacturer:
ZF Electronics
Package:
Box with Wire Leads
Description:
AN9 Series For Measuring Angle Wire Leads External Magnet, Not Included -40°C~125°C Analog Voltage 5V ±3.5% 0° ~ 90°, Continuous Clockwise Increase Box with Wire Leads
Quantity:
In Stock :7420
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Available from AS9120 Certified Supplier, AIChipLink delivers high-reliability electronic components supported by certified quality management, rigorous inspection processes, counterfeit mitigation controls, and full traceability systems. Our operations comply with AS9120, ISO 9001:2015, and IECQ ESD standards to support aerospace, industrial, defense, and mission-critical applications.
AN920036 Information
ZF Electronics AN920036 technical specifications, attributes, parameters and parts with similar specifications to ZF Electronics AN920036.
- Type
- Parameter
- Factory Lead Time
- 18 Weeks
- Mounting Type
- Chassis Mount
- Package / Case
- Box with Wire Leads
- Number of Pins
- 6
- Operating Temperature
- -40°C~125°C
- Packaging
- Bulk
- Series
- AN9
- Published
- 2011
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Type
- Parameter
- Technology
- Hall Effect
- Voltage - Supply
- 5V
- Output
- Analog Voltage
- Termination Style
- Wire Leads
- Actuator Type
- External Magnet, Not Included
- Output Current
- 8mA
- Linearity
- ±3.5%
- For Measuring
- Angle
- Output Signal
- Clockwise Increase
- Rotation Angle - Electrical, Mechanical
- 0° ~ 90°, Continuous
AN920036 FAQ
Can I request a quote for AN920036?
AN920036 from ZF Electronics is ready for RFQ submission. Send your target quantity and requirements, and AIChipLink will check current availability, lead time, and quantity-based pricing.
Why is pricing not shown as a fixed value for AN920036?
The final price for AN920036 depends on requested quantity, supply conditions, date code, package option, and destination. An RFQ lets us return the current market quote for your order.
Which specifications should I review for AN920036?
AN920036 is a ZF Electronics Motion & Position Sensors part. Key details include Packaging: Bulk and Rotation Angle - Electrical, Mechanical: 0° ~ 90°, Continuous and Moisture Sensitivity Level (MSL): 1 (Unlimited); contact us if you need the specifications verified before sourcing.
When will I receive a quotation for AN920036?
After you submit the RFQ for AN920036, our sales team typically replies within 24 hours with availability, unit pricing, lead time, shipping choices, and possible substitutes.
What is the expected shipping time for AN920036?
Once stock for AN920036 is confirmed, available inventory can generally ship within 1–2 business days. The final schedule depends on quantity, warehouse source, and delivery address.
Can AIChipLink help find alternatives to AN920036?
Yes. If AN920036 is unavailable, end-of-life, or outside your schedule, we can review comparable ZF Electronics Motion & Position Sensors parts and compatible replacement options.
