ZF Electronics AN820031

Manufacturer No:

AN820031

Manufacturer:

ZF Electronics

Package:

Box with Wire Leads

Description:

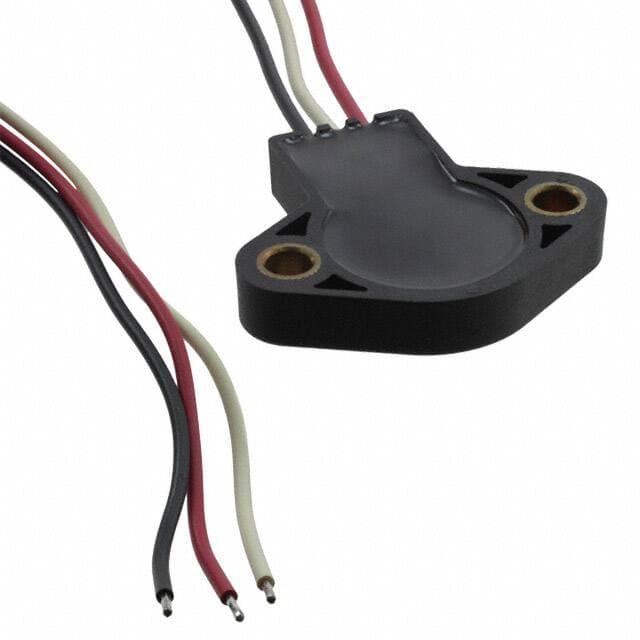

AN8 Series For Measuring Angle Wire Leads External Magnet, Not Included -40°C~150°C Analog Voltage 5V ±3.5% 0° ~ 180°, Continuous Clockwise Increase Box with Wire Leads

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AN820031 information

ZF Electronics AN820031 technical specifications, attributes, parameters and parts with similar specifications to ZF Electronics AN820031.

Type
Parameter

Factory Lead Time
18 Weeks

Mounting Type
Chassis Mount

Package / Case
Box with Wire Leads

Number of Pins
3

Operating Temperature
-40°C~150°C

Packaging
Bulk

Series
AN8

Published
2011

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Technology
Hall Effect

Voltage - Supply
5V

Output
Analog Voltage

Termination Style
Wire Leads

Actuator Type
External Magnet, Not Included

Output Current
8mA

Linearity
±3.5%

For Measuring
Angle

Output Signal
Clockwise Increase

Rotation Angle - Electrical, Mechanical
0° ~ 180°, Continuous

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ZF Electronics AN820031.

Datasheets:

zfelectronics-an820002-datasheets-6126.pdf

AN820031 Overview

To protect the linear position measuring sensors from damage, they are packaged in Box with Wire Leads packages. The Bulk package contains this electronic component. There are 3 pins on the linear position measuring sensor. For normal performance, linear position measuring sensors should carry 8mA current.

AN820031 Features

Supply Voltage: 5V
Operating Temperature: -40°C~150°C
AN8 Series
Package / Case: Box with Wire Leads
Mounting Type: Chassis Mount
3 Pins

AN820031 Applications

There are a lot of ZF Electronics
AN820031 Angle & Linear Position Measuring Sensors applications.

Control elements
Electric meters (anti tampering)
Volume control on audio equipment
Motion controllers
Dishwasher control systems
Automotive temperature range
Robotic joint position detection
Industrial motor position control
Medical robots and fitness equipment
Absolute Rotary Position Sensor

User Guide
