ZF Electronics AN820002

Manufacturer No:

AN820002

Manufacturer:

ZF Electronics

Package:

Box with Connector

Description:

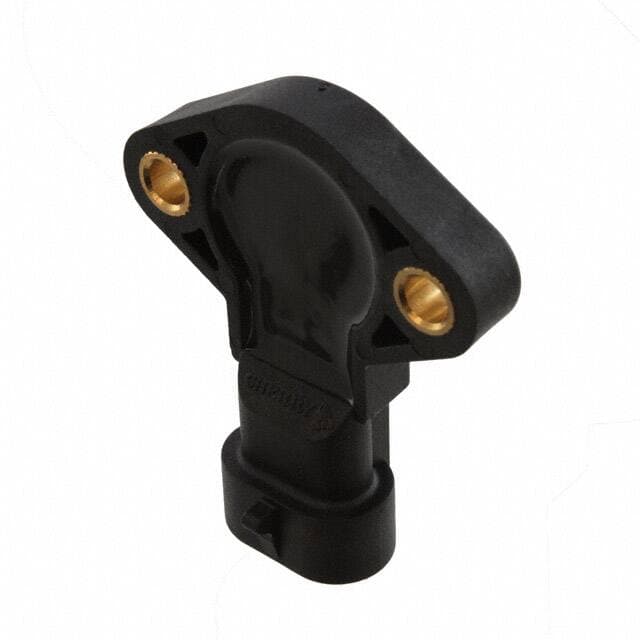

AN8 Series For Measuring Angle Connector External Magnet, Not Included -40°C~125°C Analog Voltage 5V ±3.5% 0° ~ 360°, Continuous Clockwise Increase Box with Connector

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AN820002 information

ZF Electronics AN820002 technical specifications, attributes, parameters and parts with similar specifications to ZF Electronics AN820002.

Type
Parameter

Factory Lead Time
18 Weeks

Mounting Type
Chassis Mount

Package / Case
Box with Connector

Number of Pins
3

Operating Temperature
-40°C~125°C

Packaging
Bulk

Series
AN8

Published
2013

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Technology
Hall Effect

Voltage - Supply
5V

Output
Analog Voltage

Termination Style
Connector

Actuator Type
External Magnet, Not Included

Output Current
8mA

Linearity
±3.5%

For Measuring
Angle

Output Signal
Clockwise Increase

Rotation Angle - Electrical, Mechanical
0° ~ 360°, Continuous

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ZF Electronics AN820002.

Datasheets:

zfelectronics-an820002-datasheets-6126.pdf

AN820002 Overview

As a measure of protection, the linear position measuring sensors are housed in Box with Connector packages. There is an electronic component packaged in the Bulk. In the linear position measuring sensor, pins 3 are present. It is ideal for linear position measuring sensors to carry 8mA current at all.

AN820002 Features

Supply Voltage: 5V
Operating Temperature: -40°C~125°C
AN8 Series
Package / Case: Box with Connector
Mounting Type: Chassis Mount
3 Pins

AN820002 Applications

There are a lot of ZF Electronics
AN820002 Angle & Linear Position Measuring Sensors applications.

Medical robots and fitness equipment
Absolute Rotary Position Sensor
Steering Wheel Position Sensor
Pedal Position Sensor
Motor-shaft Position Sensor
Throttle Position Sensor
Float-Level Sensor
Ride Height Position Sensor
Non-Contacting Potentiometer
X, Y, Z stage position feedback
