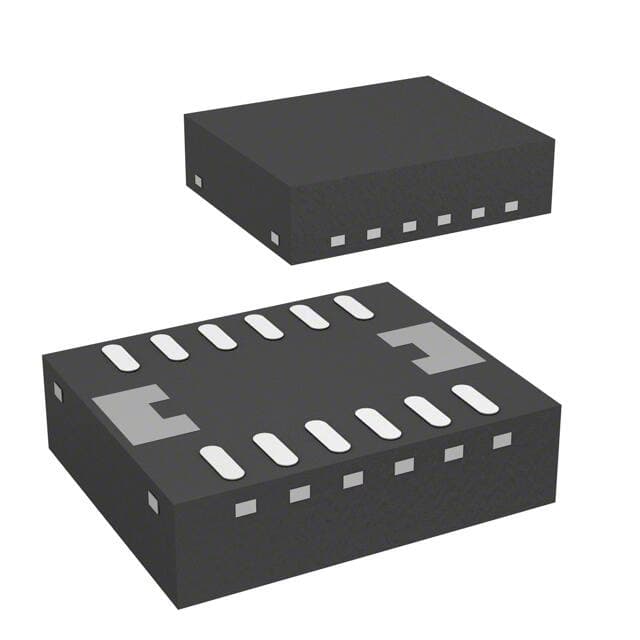

PANASONIC AN26210A-PB

Manufacturer No:

AN26210A-PB

Manufacturer:

PANASONIC

Package:

12-WFLGA

Description:

17dB Cellular, GPS, W-CDMA Tape & Reel (TR) 800MHz 2GHz 2.7V~2.95V P1dB:-12dBm 1.55dB 4.5mA Surface Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AN26210A-PB information

PANASONIC AN26210A-PB technical specifications, attributes, parameters and parts with similar specifications to PANASONIC AN26210A-PB.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
12-WFLGA

Number of Pins
12

Supplier Device Package
12-LGA (3x3)

Packaging
Tape & Reel (TR)

Published
2007

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Voltage - Supply
2.7V~2.95V

Frequency
800MHz 2GHz

Test Frequency
2.1GHz

Operating Supply Current
4.5mA

Current - Supply
4.5mA

Gain
17dB

RF Type
Cellular, GPS, W-CDMA

Noise Figure
1.55dB

P1dB
-12dBm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for PANASONIC AN26210A-PB.

Datasheets:

panasonicelectroniccomponents-an26210apb-datasheets-6676.pdf

AN26210A-PB Overview

Input RF type Cellular, GPS, W-CDMA of the RF amplifier.High reliability is achieved using advanced RF Amp' packaging Tape & Reel (TR).Shipping overseas is convenient thanks to the RF power Amplifier's packaging in 12-WFLGA.The mount Amplifiers RF should be done in the direction of Surface Mount.It is possible to supply 2.7V~2.95V volts to the Amplifiers RF.For it to perform as expected, the supply current must be in the range of 4.5mA.12 pins are on the high power RF Amplifier.It is powered by a RF Amplifiers' current of 4.5mA which is used for its operation.
