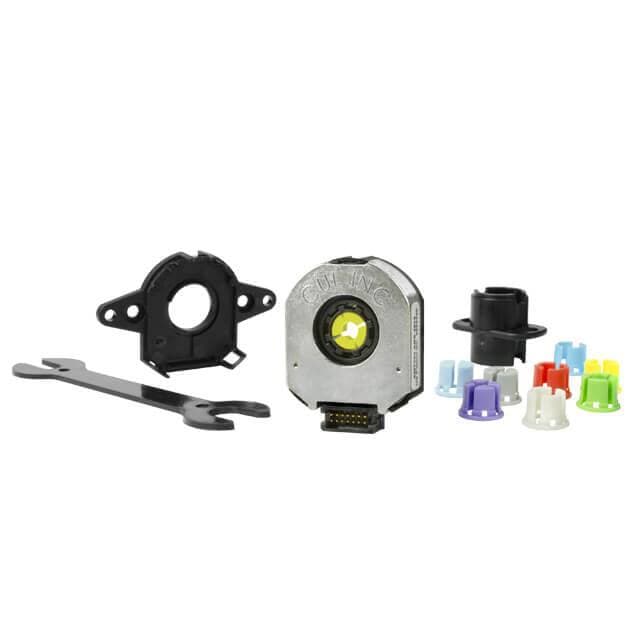

CUI AMT203-V
Manufacturer No:
AMT203-V
Manufacturer:
Package:
Description:
AMT20 Absolute Terminal Pins Chassis Mount, Motors 2mm ~ 8mm Open Center Pulses per Revolution:4096 Right Angle 5V Connector
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
AMT203-V information
CUI AMT203-V technical specifications, attributes, parameters and parts with similar specifications to CUI AMT203-V.
- Type
- Parameter
- Factory Lead Time
- 8 Weeks
- Mount
- Chassis Mount
- Mounting Type
- Chassis Mount, Motors
- Series
- AMT20
- Published
- 2011
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Termination
- Connector
- Max Operating Temperature
- 125°C
- Min Operating Temperature
- -40°C
- Voltage - Supply
- 5V
- Orientation
- Right Angle
- Termination Style
- Terminal Pins
- Actuator Type
- 2mm ~ 8mm Open Center
- Output Type
- SPI
- Number of Channels
- 3
- Resolution
- 1.5 B
- Built in Switch
- No
- Encoder Type
- Absolute
- Detent
- No
- Pulses per Revolution
- 4096
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for CUI AMT203-V.
Datasheets:
AMT203-V Overview
A supply voltage of 5V is sufficient for encoders to have a good performance. A minimum operating temperature of -40°C is required to ensure that the encoder works properly. It is important to note, however, that this electronic part can reach a maximum operating temperature of 125°C.
AMT203-V Features
Series: AMT20
5V Supply Voltage
Termination: Connector
AMT203-V Applications
There are a lot of CUI Devices
AMT203-V Encoders applications.
- Communications equipment
- Printers
- Plotters
- Tape drives
- Factory automation equipment
- Global Positioning/Driver Information Systems
- Medical Equipment
- Automatic health monitoring systems
- RF-based home automation system
- Robotics vehicle with the metal detector
