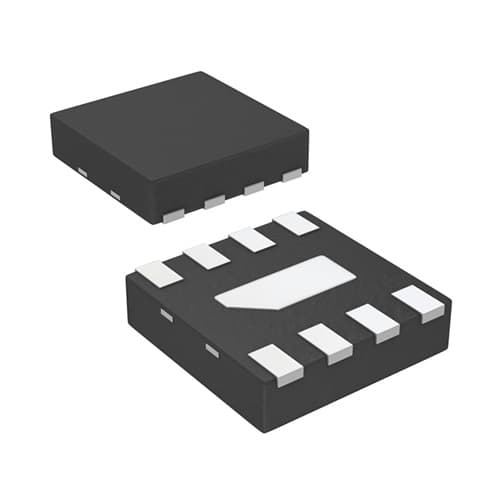

Broadcom AMMP-6120-BLK

Manufacturer No:

AMMP-6120-BLK

Manufacturer:

Broadcom

Package:

8-QFN

Description:

Surface Mount 8-QFN Tray Frequency Multiplier 4GHz~12GHz VSAT, DBS 8 Terminations

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AMMP-6120-BLK information

Broadcom AMMP-6120-BLK technical specifications, attributes, parameters and parts with similar specifications to Broadcom AMMP-6120-BLK.

Type
Parameter

Factory Lead Time
14 Weeks

Mounting Type
Surface Mount

Package / Case
8-QFN

Surface Mount
YES

Packaging
Tray

Published
2006

JESD-609 Code
e4

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
2A (4 Weeks)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
Nickel/Gold (Ni/Au)

HTS Code
8542.39.00.01

Construction
COMPONENT

Reach Compliance Code
compliant

Frequency
4GHz~12GHz

Function
Frequency Multiplier

Power Supplies
5V

Supply Current-Max
120mA

RF/Microwave Device Type
FREQUENCY DOUBLER

RF Type
VSAT, DBS

Input Power-Max (CW)
15dBm

Characteristic Impedance
50Ohm

Secondary Attributes
Output Power -11 to 5dBm

Download datasheets and manufacturer documentation for Broadcom AMMP-6120-BLK.

PCN Obsolescence/ EOL:

broadcomlimited-adet5000tr1-pcnobsolescenceeol-5252.pdf

PCN Packaging:

broadcomlimited-adet5000tr1-pcnpackaging-5254.pdf

AMMP-6120-BLK Overview

4GHz~12GHz is the frequency in which RF modulator operates.An excellent RF IC thanks to its enhanced 8-QFN package.The Tray package houses this RF modulator.A Surface Mount-type PCB or development board can be used to place this RF modulator.This RF module has 8 terminations for driving and receiving data signals.

AMMP-6120-BLK Features

Frequency of 4GHz~12GHz
8-QFN package
Tray
8 terminations

AMMP-6120-BLK Applications

There are a lot of Broadcom Limited
AMMP-6120-BLK RF Misc ICs and Modules applications.

Communications test equipmen
PA linearization
PA predistortion
Amplitude modulation
Phase modulation
Variable matched attenuator
Phase shifter
Cellular base stations
Radio links
Fixed wireless access
