ONSEMI AMIS30522C5222RG
ONSEMI AMIS30522C5222RG

ONSEMI AMIS30522C5222RG

Manufacturer No:

AMIS30522C5222RG

Manufacturer:

ONSEMI

Package:

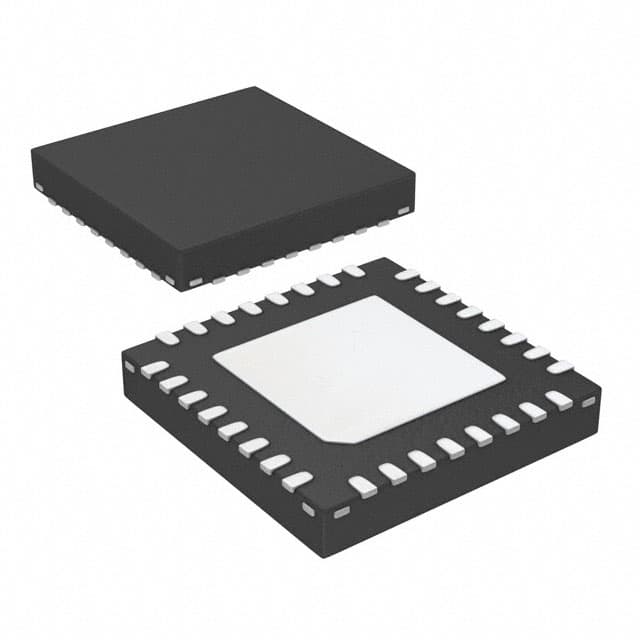

32-VQFN Exposed Pad

Description:

Stepper Motor Driver with Comprehensive Diagnostic Feedback and SLA Output

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AMIS30522C5222RG information

ONSEMI AMIS30522C5222RG technical specifications, attributes, parameters and parts with similar specifications to ONSEMI AMIS30522C5222RG.

  • Type
  • Parameter
  • Container Type
  • REEL
  • VCC Min (V)
  • 4.75
  • Case Outline
  • 560AA
  • MSL Temp (°C)
  • 260
  • VM Max (V)
  • 40
  • VCC Max (V)
  • 5.25
  • IO Max (A)
  • 1.6
  • Control Type
  • SPI
  • Package Type
  • NQFP-32
  • Fault Detection
  • Thermal
  • Container Qty.
  • 2500
  • VM Min (V)
  • 6
  • IO Peak Max (A)
  • 1.6
  • Step Resolution
  • 1/32
  • Current Sense
  • Fully Integrated
  • MSL Type
  • 3

Download datasheets and manufacturer documentation for ONSEMI AMIS30522C5222RG.

Datasheet:

Package Drawing:

The AMIS-30522 is a micro-stepping stepper motor driver for bipolar stepper motors. The chip is connected through I/O pins and a SPI interface with an external microcontroller. It has an on-chip voltage regulator, reset-output and watchdog reset, able to supply peripheral devices. AMIS-30522 contains a current-translation table and takes the next micro-step depending on the clock signal on the NXT input pin and the status of the DIR (direction) register or input pin. The chip provides a speed and load angle output. This allows the creation of stall detection algorithms and control loops based on load-angle to adjust torque and speed. It uses a proprietary PWM algorithm for reliable current control. The AMIS-30522 is implemented in I2T100 technology, enabling both high-voltage analog circuitry and digital functionality on the same chip. The chip is fully compatible with the automotive voltage requirements. The AMIS-30522 is ideally suited for general-purpose stepper motor applications in the automotive, industrial, medical, and marine environment. With the on-chip voltage regulator it further reduces the BOM for mechatronic stepper applications.

End Product

  • Intelligent positioning and dynamic motion of surveillance cameras and spotlights
  • Dose pumps
  • Vending machines
  • Pick-and-place machines
  • Automotive headlight position
  • Dynamic motion of weaving and sewing equipment

Feature

  • Integrated 5V regulator
  • Integrated reset function
  • On-chip current translator
  • SPI interface
  • Speed and load angle output
  • Seven step modes from full step up to 32 micro-steps
  • Fully integrated current-sense
  • PWM current control with automatic selection of fast and slow decay
  • Low EMC PWM with selectable voltage slopes
  • Active fly-back diodes
  • Full output protection and diagnosis
  • Thermal warning and shutdown
  • Compatible with 5V and 3.3V microcontrollers
  • Dual H-Bridge for 2-phase stepper motors
  • Programmable peak-current up to 1.6A using a 5-bit current DAC
  • Integrated watchdog function
  • Flap/valve control in climate control facilities
