Texas Instruments AMC7836IPAPRG4

Manufacturer No:

AMC7836IPAPRG4

Manufacturer:

Texas Instruments

Package:

Description:

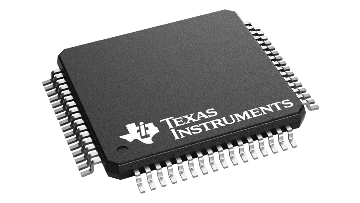

Data Acquisition ADCs/DACs - Specialised High-Density, 12-Bit Analog Monitor and Control Solution, Bipolar DAC

Quantity:

In Stock :5317

Looking for price or availability? Send us an RFQ and our sales team will respond quickly.

Shipping & Availability

Fast worldwide shipping via DHL, FedEx, UPS, and EMS.

Shipped from：HK Warehouse

Expected Shipping：Thu, May 7 - Fri, May 8, 2026

Lead Time：Inquire about availability

Date Code：Within 2 Years

Payment

We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.

Authenticity Guarantee

All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.

Quality Assurance

Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.

User Guide

Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.

PURCHASE

Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.

MEANS OF PAYMENT

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.

RFQ (REQUEST FOR QUOTATIONS)

Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.

IMPORTANT NOTICE

Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

Step1：Prepare product

Step2：Desiccant Protection

Step3：Vacuum Packaging

Step4：Individual Package

Step5：Anti-collision Filling

Step6：Packaging Box

SHIPPING COST

1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.

SHIPPING METHOD

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

DELIVERY TIME

1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.

AMC7836IPAPRG4 Information

Texas Instruments AMC7836IPAPRG4 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments AMC7836IPAPRG4.

Type
Parameter

Number of ADC channels
21

ADC resolution (bps)
12

Number of DAC channels
16

DAC resolution (bps)
12

Temperature sensing
Local

Number of GPIOs
8

Interface type
SPI

Features
GPIO, Temp Sensor

Operating temperature range (°C)
-40 to 125

Rating
Catalog

Type
Parameter

ADC sampling rate (ksps)
87

ADC analog input range (min) (V)
-12.5

ADC analog input range (max) (V)
12.5

DAC settling time (µs)
10

DAC output full-scale (min) (V)
-10

DAC output full-scale (max) (V)
10

Package
HTQFP (PAP)

Pins
64

Size
144 mm² 12 x 12

REACH Status
Yes

Download datasheets and manufacturer documentation for Texas Instruments AMC7836IPAPRG4.

The AMC7836 is a highly-integrated, low-power, analog monitoring and control solution. The device includes a 21-channel, 12-bit analog-to-digital converter (ADC), sixteen 12-bit digital-to-analog converters (DACs) with programmable output ranges, eight GPIOs, an internal reference, and a local temperature-sensor channel. The high level of integration significantly reduces component count and simplifies closed-loop system designs making it ideal for multichannel applications where board space, size, and low-power are critical.

The low-power, very high-integration and wide operating-temperature range of the device make it suitable as an all-in-one, low-cost, bias-control circuit for the power amplifiers (PA) found in multichannel RF communication systems. The flexible DAC output ranges allow the device to be used as a biasing solution for a large variety of transistor technologies, such as LDMOS, GaAs, and GaN. The AMC7836 feature set is similarly beneficial in general-purpose monitor and control systems.

For applications that require a different channel-count, additional features, or converter resolutions, Texas Instruments offers a complete family of analog monitor and control (AMC) products. For more information, go to www.ti.com/amc.

16 Monotonic 12-Bit DACs
- Selectable Ranges: –10 V to 0 V, –5 V to 0 V, 0 V to 5 V, and 0 V to 10 V
- High Current Drive Capability: up to ±15 mA
- Auto-Range Detector
- Selectable Clamp Voltage
12-Bit SAR ADC
- 21 External Analog Inputs
  - 16 Bipolar Inputs: –12.5 V to +12.5 V
  - 5 High-Precision Inputs: 0 V to 5 V
- Programmable Out-of-Range Alarms
Internal 2.5-V Reference
Internal Temperature Sensor
- –40°C to +125°C Operation
- ±2.5°C Accuracy
Eight General-Purpose I/O Ports (GPIOs)
Low-Power SPI-Compatible Serial Interface
- 4-Wire Mode, 1.8-V to 5.5-V Operation
Operating Temperature: –40°C to +125°C
Available in 64-Pin HTQFP PowerPAD™ IC Package
