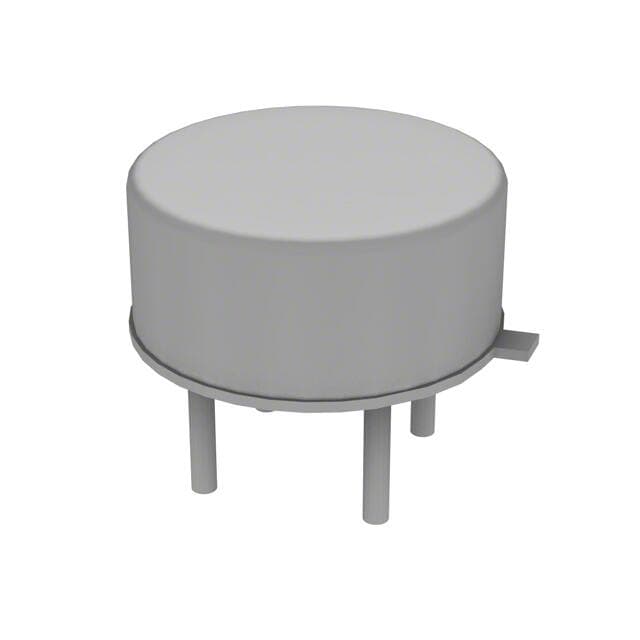

MA/COM AM-147-PIN

Manufacturer No:

AM-147-PIN

Manufacturer:

MA/COM

Package:

TO-8 Style, 4 Lead

Description:

17dB General Purpose WIDE BAND MEDIUM POWER Bulk 3MHz~500MHz 2 3.4dB 52mA Through Hole

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AM-147-PIN information

MA/COM AM-147-PIN technical specifications, attributes, parameters and parts with similar specifications to MA/COM AM-147-PIN.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-8 Style, 4 Lead

Number of Pins
4

Packaging
Bulk

Published
2015

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
85°C

Min Operating Temperature
-55°C

Additional Feature
HIGH RELIABILITY

Construction
COMPONENT

Frequency
3MHz~500MHz

Operating Supply Voltage
15V

Number of Channels
1

Operating Supply Current
52mA

Gain
17dB

RF/Microwave Device Type
WIDE BAND MEDIUM POWER

VSWR-Max
2

RF Type
General Purpose

Characteristic Impedance
50Ohm

Noise Figure
3.4dB

Radiation Hardening
No

Download datasheets and manufacturer documentation for MA/COM AM-147-PIN.

Datasheets:

macomtechnologysolutions-am147pin-datasheets-1252.pdf

AM-147-PIN Overview

This RF amplifier has a very low cost and is capable of WIDE BAND MEDIUM POWER RF/Microwave devices of any type.General Purpose RF Amplifier type.High reliability is achieved by using advanced RF Amp' packagings Bulk.Since the RF power Amplifier is packed in TO-8 Style, 4 Lead, shipping overseas is convenient.The way to mount Amplifiers RF is Through Hole.Among its additional features are the following: HIGH RELIABILITYOptimal performance can be achieved by operating the supply current in the 52mA range.With 4 pins, the high power RF Amplifier is designed.RF power Amplifier shouldrun at a temperature 85°C higher than 85°C.

AM-147-PIN Features

WIDE BAND MEDIUM POWER RF/Microwave Amplifier
RF Type General Purpose
4 pins

AM-147-PIN Applications

There are a lot of M/A-Com Technology Solutions
AM-147-PIN RF Amplifiers applications.

Cellular Phones with GPS
Notebook PC
Ultra-Mobile PC
Recreational
Marine Navigation
Avionics
GPS
GLONASS
BeiDou
Galileo
