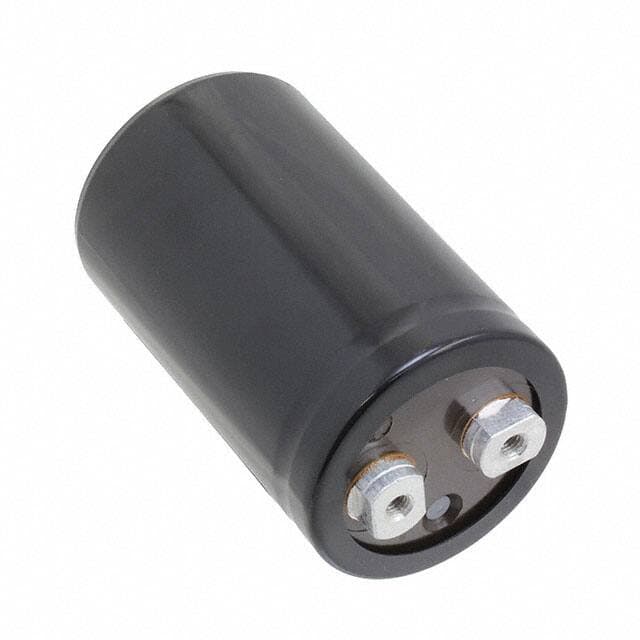

KEMET ALS30A223KE063

Manufacturer No:

ALS30A223KE063

Manufacturer:

KEMET

Package:

Radial, Can - Screw Terminals

Description:

ALS30 22000?F Capacitor ±20% Bulk Chassis Mount 13.9A 2.008Dia 51.00mm -40°C~85°C Polar 22.2mm Radial, Can - Screw Terminals

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ALS30A223KE063 information

KEMET ALS30A223KE063 technical specifications, attributes, parameters and parts with similar specifications to KEMET ALS30A223KE063.

Type
Parameter

Factory Lead Time
18 Weeks

Mount
Chassis Mount, Clamp

Mounting Type
Chassis Mount

Package / Case
Radial, Can - Screw Terminals

Terminal Shape
BINDING POST

Dielectric Material
Aluminium

Operating Temperature
-40°C~85°C

Packaging
Bulk

Series
ALS30

Published
1997

Size / Dimension
2.008Dia 51.00mm

Tolerance
±20%

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
Screw

ECCN Code
EAR99

Applications
General Purpose

Capacitance
22000?F

Voltage - Rated DC
63V

Reference Standard
IEC60384-4

Lead Pitch
22.2mm

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

Lead Spacing
0.874 22.20mm

Voltage
63V

Lifetime @ Temp
18000 Hrs @ 85°C

Leakage Current
6mA

Ripple Current
13.9A

Polarization
Polar

Life (Hours)
18000 hours

Impedance
11mOhm

Ripple Current @ Low Frequency
13.9A @ 100Hz

Ripple Current @ High Frequency
14.4A @ 10kHz

Ripple Current (AC)
13.9A

Diameter
51mm

Height
82mm

Height Seated (Max)
3.307 84.00mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for KEMET ALS30A223KE063.

ALS30A223KE063 Overview

In terms of ripple current, it is 14.4A @ 10kHz at full charge.In order for 12mOhm @ 100Hz to perform its full function, the ESR (Equivalent Series Resistance) needs to be provided.When the charge is lowest, the ripple current is 13.9A @ 100Hz.Sitting height (Max) should not exceed 3.307 84.00mm.Voltage - Rated DC of 63V is required to operate this capacitor.It is recommended to maintain the operating temperature at -40°C~85°C in order to maximize efficiency.

ALS30A223KE063 Features

the ripple current is 14.4A @ 10kHz.
the ripple current is 13.9A @ 100Hz.
voltage - Rated DC of 63V
an operating temperature of -40°C~85°C

ALS30A223KE063 Applications

There are a lot of KEMET
ALS30A223KE063 applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
