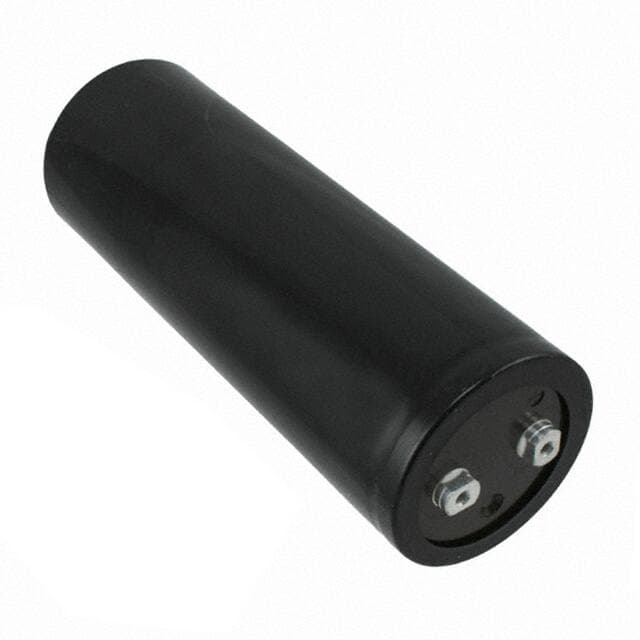

KEMET ALS30A222NF450
KEMET ALS30A222NF450

KEMET ALS30A222NF450

Manufacturer No:

ALS30A222NF450

Manufacturer:

KEMET

Package:

Radial, Can - Screw Terminals

Description:

ALS30 2200?F Capacitor ±20% Bulk Chassis Mount 12.2A 3.032Dia 77.00mm -40°C~85°C Polar 31.8008mm Radial, Can - Screw Terminals

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ALS30A222NF450 information

KEMET ALS30A222NF450 technical specifications, attributes, parameters and parts with similar specifications to KEMET ALS30A222NF450.

  • Type
  • Parameter
  • Factory Lead Time
  • 17 Weeks
  • Mount
  • Chassis Mount, Clamp
  • Mounting Type
  • Chassis Mount
  • Package / Case
  • Radial, Can - Screw Terminals
  • Terminal Shape
  • BINDING POST
  • Number of Pins
  • 2
  • Dielectric Material
  • Aluminium
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Bulk
  • Series
  • ALS30
  • Published
  • 1997
  • Size / Dimension
  • 3.032Dia 77.00mm
  • Tolerance
  • ±20%
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • Screw
  • ECCN Code
  • EAR99
  • Applications
  • General Purpose
  • Capacitance
  • 2200?F
  • Voltage - Rated DC
  • 450V
  • Terminal Pitch
  • 31.8mm
  • Reference Standard
  • IEC60384-4
  • Lead Pitch
  • 31.8008mm
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Lead Length
  • 5.5mm
  • ESR (Equivalent Series Resistance)
  • 59mOhm @ 100Hz
  • Lead Spacing
  • 1.252 31.80mm
  • Lead Diameter
  • 13 mm
  • Voltage
  • 450V
  • Lifetime @ Temp
  • 20000 Hrs @ 85°C
  • Leakage Current
  • 5.94mA
  • Ripple Current
  • 12.2A
  • Test Frequency
  • 100Hz
  • Polarization
  • Polar
  • Life (Hours)
  • 20000 hours
  • Impedance
  • 41mOhm
  • Ripple Current @ Low Frequency
  • 12.2A @ 100Hz
  • Ripple Current @ High Frequency
  • 21.1A @ 10kHz
  • Ripple Current (AC)
  • 9.6A
  • Diameter
  • 77mm
  • Height
  • 105mm
  • Height Seated (Max)
  • 4.134 105.00mm
  • REACH SVHC
  • No SVHC
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for KEMET ALS30A222NF450.

Datasheets:

ALS30A222NF450 Overview


Full charge should result in a ripple current of 21.1A @ 10kHz.To fully perform its function, 59mOhm @ 100Hz needs the equivalent series resistance.If the charge is low, ripple current is 12.2A @ 100Hz.Keep your seated height below 4.134 105.00mm.A voltage of 450V DC is used to operate this capacitor.A voltage of 450V AC powers this capacitor.The maximum efficiency can be achieved by maintaining -40°C~85°C as the operating temperature.

ALS30A222NF450 Features


the ripple current is 21.1A @ 10kHz.
the ripple current is 12.2A @ 100Hz.
voltage - Rated DC of 450V
an operating temperature of -40°C~85°C


ALS30A222NF450 Applications


There are a lot of KEMET
ALS30A222NF450 applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
