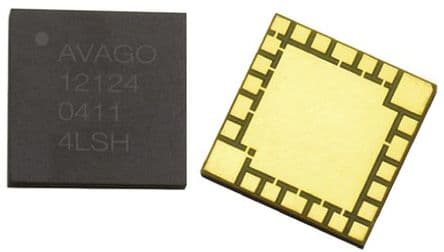

BROADCOM ALM-12224-BLKG

Manufacturer No:

ALM-12224-BLKG

Manufacturer:

BROADCOM

Package:

24-SMD Module, No Lead

Description:

Surface Mount 24-SMD Module, No Lead Bulk LNA, Switch 2.3GHz~2.4GHz TD-LTE 24 Pins 24 Terminations 8mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ALM-12224-BLKG information

BROADCOM ALM-12224-BLKG technical specifications, attributes, parameters and parts with similar specifications to BROADCOM ALM-12224-BLKG.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
24-SMD Module, No Lead

Number of Pins
24

Packaging
Bulk

Published
2011

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
2A (4 Weeks)

Number of Terminations
24

ECCN Code
EAR99

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

HTS Code
8542.33.00.01

Subcategory
RF/Microwave Amplifiers

Technology
GAAS

Frequency
2.3GHz~2.4GHz

Function
LNA, Switch

Power Supplies
528V

Max Supply Voltage
5.5V

Impedance
50Ohm

Nominal Supply Current
51mA

RF/Microwave Device Type
NARROW BAND MEDIUM POWER

RF Type
TD-LTE

Height
1.2mm

Width
8mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for BROADCOM ALM-12224-BLKG.

ALM-12224-BLKG Overview

RF modulator operates on the basis of the frequency of 2.3GHz~2.4GHz.This RF IC is excellent due to its enhanced 24-SMD Module, No Lead package.The package of this RF modulator is Bulk.On any Surface Mount-type PCB or development board, you can install this RF modulator.RF module has 24 terminations built in for driving or receiving signals from data.24-pin RF module with improved power dissipation control.It must be below 85°C when the RF switch IC's system is operating.This RF switch IC must be able to operate at a minimum of -40°C degrees Celsius during normal operation.
