Advanced Linear Devices Inc. ALD4202MPCL
Advanced Linear Devices Inc. ALD4202MPCL

Advanced Linear Devices Inc. ALD4202MPCL

Manufacturer No:

ALD4202MPCL

Manufacturer:

Advanced Linear Devices Inc.

Package:

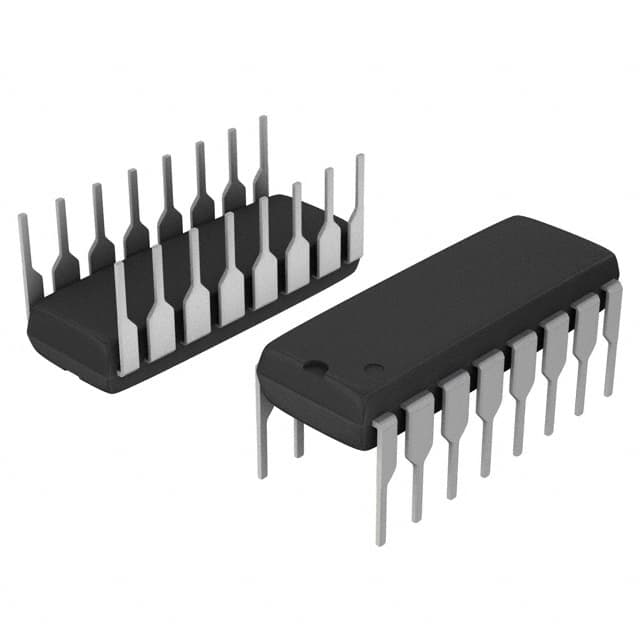

16-DIP (0.300, 7.62mm)

Description:

240ns, 130ns SPST - NO 135Ohm Analog Switches 100pA 16-DIP (0.300, 7.62mm)

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ALD4202MPCL information

Advanced Linear Devices Inc. ALD4202MPCL technical specifications, attributes, parameters and parts with similar specifications to Advanced Linear Devices Inc. ALD4202MPCL.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Mounting Type
  • Through Hole
  • Package / Case
  • 16-DIP (0.300, 7.62mm)
  • Number of Pins
  • 16
  • Supplier Device Package
  • 16-PDIP
  • Operating Temperature
  • 0°C~70°C TA
  • Packaging
  • Tube
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Resistance
  • 135Ohm
  • Max Operating Temperature
  • 70°C
  • Min Operating Temperature
  • 0°C
  • Max Power Dissipation
  • 600mW
  • Number of Circuits
  • 4
  • Max Supply Voltage
  • 12V
  • Min Supply Voltage
  • 3V
  • Nominal Supply Current
  • 10nA
  • Max Supply Current
  • 1?A
  • Turn On Delay Time
  • 110 ns
  • Voltage - Supply, Single/Dual (±)
  • 3V~12V ±1.5V~6V
  • Turn-Off Delay Time
  • 180 ns
  • Max Dual Supply Voltage
  • 6V
  • On-State Resistance (Max)
  • 135Ohm
  • Multiplexer/Demultiplexer Circuit
  • 1:1
  • Channel Capacitance (CS(off), CD(off))
  • 3pF 3pF
  • Switch Circuit
  • SPST - NO
  • Switch Time (Ton, Toff) (Max)
  • 240ns, 130ns
  • Charge Injection
  • 2pC
  • Channel-to-Channel Matching (?Ron)
  • 2.7Ohm
  • Crosstalk
  • -90dB @ 100kHz
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Advanced Linear Devices Inc. ALD4202MPCL.

Datasheets:

ALD4202MPCL Overview


The electronic component is convenient to ship overseas because it is packed in a 16-DIP (0.300, 7.62mm). The advanced packaging method Tube provides high reliability. It is mounted in the position Through Hole. 1:1 is the ratio between multiplexers and demultiplexers. The operating temperature is extended to around 0°C~70°C TA. Based on SPST - NO switching circuits, these analog multiplexers work. The multiplexer consists of 4 circuits. The internal resistance of this digital multiplexer is 135Ohm. Datasheets for functions of 16 pins are available. normally, users should not supply switches with voltages higher than 12V. A low voltage of 3V should be applied to the electronic component. If you put voltage higher than 1?A on the digital multiplexer, damage may occur. For this multiplexer, dual supply voltage is feasible, but it should not exceed 6V. It is not recommended to operate the switches in an environment with a temperature higher than 70°C. Suppliers offer 16-PDIP packages.

ALD4202MPCL Features


Switch Circuit: SPST - NO


ALD4202MPCL Applications


There are a lot of Advanced Linear Devices Inc.
ALD4202MPCL Analog Switches & Multiplexers ICs applications.


  • Low-Voltage
  • Isolation
  • Medical
  • Imaging
  • Ultrasound
  • Audio and video switching
  • Automatic test equipment
  • Precision data acquisition
  • Battery-powered systems
  • Sample-and-hold systems
