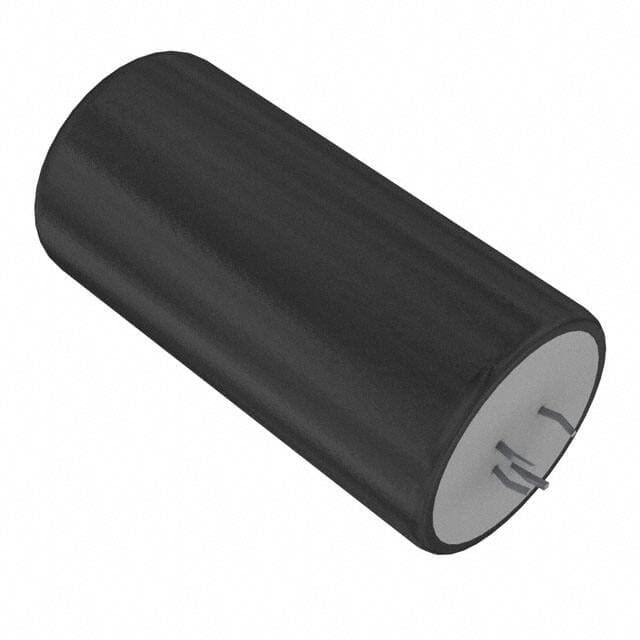

KEMET ALC10C152EG250

Manufacturer No:

ALC10C152EG250

Manufacturer:

KEMET

Package:

Radial, Can - Snap-In - 4 Lead

Description:

ALC10 1500?F Capacitor ±20% Bulk Through Hole 5.29A 1.575Dia 40.00mm -40°C~85°C Polar 10mm Radial, Can - Snap-In - 4 Lead

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ALC10C152EG250 information

KEMET ALC10C152EG250 technical specifications, attributes, parameters and parts with similar specifications to KEMET ALC10C152EG250.

Type
Parameter

Factory Lead Time
32 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can - Snap-In - 4 Lead

Number of Pins
4

Dielectric Material
Aluminium

Operating Temperature
-40°C~85°C

Packaging
Bulk

Series
ALC10

Published
2003

Size / Dimension
1.575Dia 40.00mm

Tolerance
±20%

Feature
General Purpose

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
Snap in

ECCN Code
EAR99

Applications
General Purpose

Capacitance
1500?F

Voltage - Rated DC
250V

Voltage - Rated AC
250V

Lead Pitch
10mm

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

ESR (Equivalent Series Resistance)
89mOhm @ 100Hz

Lead Spacing
0.886 22.50mm

Lead Diameter
2 mm

Voltage
250V

Lifetime @ Temp
18000 Hrs @ 85°C

Leakage Current
6mA

Ripple Current
5.29A

Test Frequency
100Hz

Polarization
Polar

Life (Hours)
18000 hours

Impedance
69mOhm

Ripple Current @ Low Frequency
5.29A @ 100Hz

Ripple Current @ High Frequency
6.58A @ 10kHz

Ripple Current (AC)
6.58A

Diameter
40mm

Height
55mm

Height Seated (Max)
2.244 57.00mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for KEMET ALC10C152EG250.

Datasheets:

kemet-alc10c152eg250-datasheets-2155.pdf

ALC10C152EG250 Overview

A full charge means 6.58A @ 10kHz ripple current.A full performance of 89mOhm @ 100Hz requires the ESR (Equivalent Series Resistance).During the lowest charge, ripple current is 5.29A @ 100Hz.You should keep the seated height (Max) below 2.244 57.00mm.The capacitor operates from 250V DC voltage.There is no voltage rating on this capacitor.When operating at -40°C~85°C, high efficiency can be achieved.

ALC10C152EG250 Features

the ripple current is 6.58A @ 10kHz.
the ripple current is 5.29A @ 100Hz.
voltage - Rated DC of 250V
an operating temperature of -40°C~85°C

ALC10C152EG250 Applications

There are a lot of KEMET
ALC10C152EG250 applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
