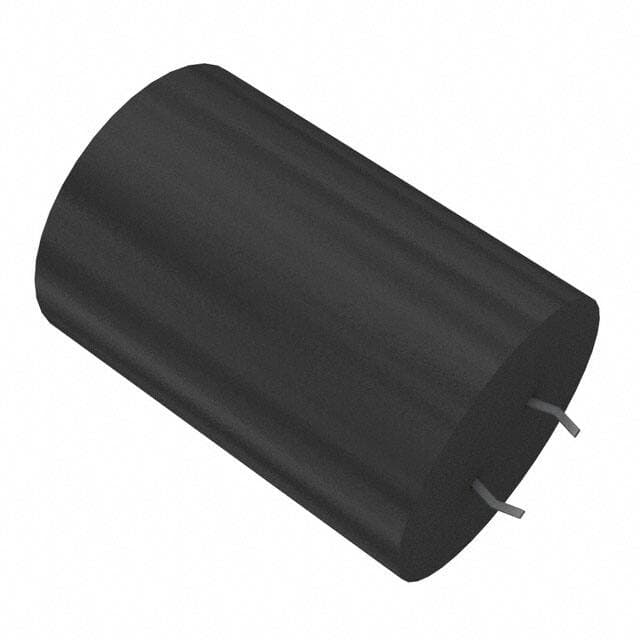

KEMET ALC10A681DH400
KEMET ALC10A681DH400

KEMET ALC10A681DH400

Manufacturer No:

ALC10A681DH400

Manufacturer:

KEMET

Package:

Radial, Can - Snap-In

Description:

ALC10 680?F Capacitor ±20% Bulk Through Hole 2.9A 1.378Dia 35.00mm -40°C~85°C Polar 10.0076mm Radial, Can - Snap-In

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ALC10A681DH400 information

KEMET ALC10A681DH400 technical specifications, attributes, parameters and parts with similar specifications to KEMET ALC10A681DH400.

  • Type
  • Parameter
  • Factory Lead Time
  • 32 Weeks
  • Mount
  • PCB, Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can - Snap-In
  • Number of Pins
  • 2
  • Dielectric Material
  • Aluminium
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Bulk
  • Series
  • ALC10
  • Published
  • 2009
  • Size / Dimension
  • 1.378Dia 35.00mm
  • Tolerance
  • ±20%
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • Snap in
  • ECCN Code
  • EAR99
  • Applications
  • General Purpose
  • Capacitance
  • 680?F
  • Voltage - Rated DC
  • 400V
  • Terminal Pitch
  • 10mm
  • Reference Standard
  • IEC60384-4
  • Lead Pitch
  • 10.0076mm
  • Lead Length
  • 6.3mm
  • ESR (Equivalent Series Resistance)
  • 232mOhm @ 100Hz
  • Lead Spacing
  • 0.394 10.00mm
  • Lead Diameter
  • 2 mm
  • Voltage
  • 400V
  • Lifetime @ Temp
  • 15000 Hrs @ 85°C
  • Leakage Current
  • 6mA
  • Ripple Current
  • 2.9A
  • Test Frequency
  • 100Hz
  • Polarization
  • Polar
  • Life (Hours)
  • 2000 hours
  • Impedance
  • 142mOhm
  • Ripple Current @ Low Frequency
  • 2.9A @ 100Hz
  • Ripple Current @ High Frequency
  • 4.73A @ 10kHz
  • Diameter
  • 35mm
  • Height
  • 60mm
  • Height Seated (Max)
  • 2.441 62.00mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for KEMET ALC10A681DH400.

Datasheets:

ALC10A681DH400 Overview


Full charge should result in a ripple current of 4.73A @ 10kHz.To fully perform its function, 232mOhm @ 100Hz needs the equivalent series resistance.If the charge is low, ripple current is 2.9A @ 100Hz.Keep your seated height below 2.441 62.00mm.A voltage of 400V DC is used to operate this capacitor.The maximum efficiency can be achieved by maintaining -40°C~85°C as the operating temperature.

ALC10A681DH400 Features


the ripple current is 4.73A @ 10kHz.
the ripple current is 2.9A @ 100Hz.
voltage - Rated DC of 400V
an operating temperature of -40°C~85°C


ALC10A681DH400 Applications


There are a lot of KEMET
ALC10A681DH400 applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
