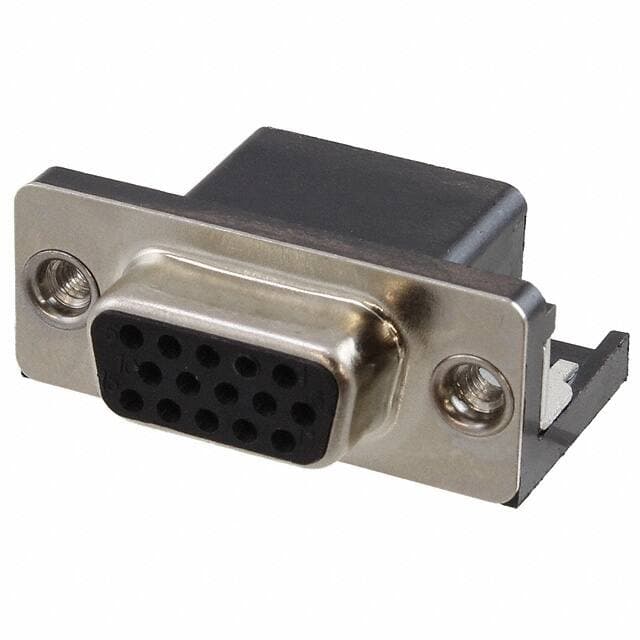

Assmann WSW Components AHDF15A-KG-TAXB

Manufacturer No:

AHDF15A-KG-TAXB

Manufacturer:

Package:

Description:

D-Sub, High Density Receptacle, Female Sockets 15-Position Signal Solder 1 DE E High Density Through Hole, Right Angle Brass Gold Steel, Nickel Plated

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AHDF15A-KG-TAXB information

Assmann WSW Components AHDF15A-KG-TAXB technical specifications, attributes, parameters and parts with similar specifications to Assmann WSW Components AHDF15A-KG-TAXB.

Type
Parameter

Factory Lead Time
23 Weeks

Contact Material
Brass

Mount
Through Hole

Mounting Type
Through Hole, Right Angle

Dielectric Material
Polybutylene Terephthalate (PBT), Glass Filled

Housing Material
PBT

Shell Material, Finish
Steel, Nickel Plated

Packaging
Tray

Published
2006

JESD-609 Code
e4

Feature
Board Lock

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Receptacle, Female Sockets

Number of Positions
15

Max Operating Temperature
125°C

Min Operating Temperature
-55°C

Color
Black

Number of Rows
3

Voltage - Rated
250V

Additional Feature
BOARDLOCKS

Subcategory
D Type Connectors

Total Number of Contacts
15

Terminal Pitch
2.286mm

Current Rating
3A

Shell Finish
TIN

Reference Standard
UL

Contact Finish
Gold

Reliability
COMMERCIAL

Number Of PCB Rows
3

PCB Contact Pattern
STAGGERED

Body Breadth
0.494 inch

Body Depth
0.64 inch

Rated Current (Signal)
5A

Insulation Resistance
5000000000Ohm

Flange Feature
Housing/Shell (4-40)

Mating Contact Pitch
0.108 inch

Dielectric Withstanding Voltage
1000VAC V

Connector Style
D-Sub, High Density

PCB Contact Row Spacing
2.54 mm

Mating Contact Row Spacing
0.112 inch

Shell Size, Connector Layout
1 DE E High Density

Backset Spacing
0.350 (8.89mm)

Contact Finish Thickness
Flash

Material Flammability Rating
UL94 V-0

Download datasheets and manufacturer documentation for Assmann WSW Components AHDF15A-KG-TAXB.

Datasheets:

assmannwswcomponents-ahdf15akgtaxb-datasheets-8308.pdf

assmannwswcomponents-ahdf15akgtaxb-datasheets-8389.pdf

AHDF15A-KG-TAXB Overview

The connector type Receptacle, Female Sockets refers to the connector type.The device's mounting type is Through Hole, Right Angle.In order to package the product, a Tray case is used.In addition, there are other features such as BOARDLOCKS, to mention only a few.It's best to use it when the temperature is below 125°C.This device must operate at a minimum temperature of -55°C.Its Board Lock feature renders it more powerful in many ways.The part is mounted by Through Hole.

AHDF15A-KG-TAXB Features

AHDF15A-KG-TAXB Applications

There are a lot of Assmann WSW Components
AHDF15A-KG-TAXB D-Sub Connectors applications.

Industrial Automation
Transportation
Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
