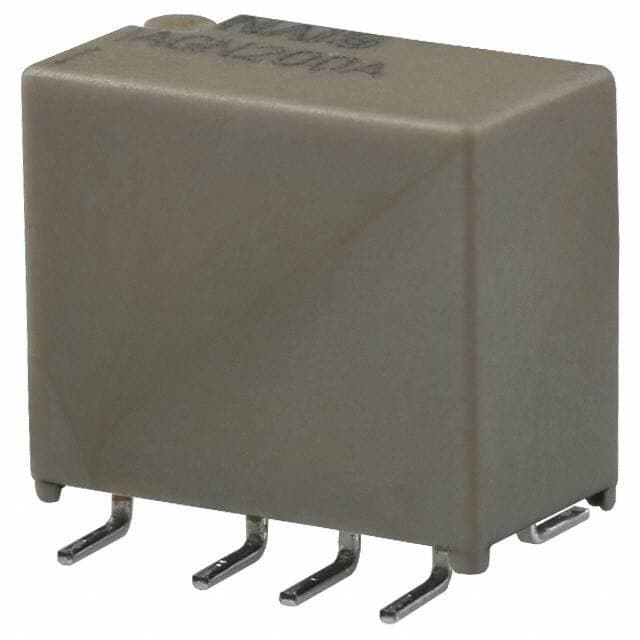

Panasonic AGN200A12Z
Manufacturer No:
AGN200A12Z
Manufacturer:
Package:
Description:
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
AGN200A12Z information
Panasonic AGN200A12Z technical specifications, attributes, parameters and parts with similar specifications to Panasonic AGN200A12Z.
- Type
- Parameter
- Factory Lead Time
- 36 Weeks
- Contact Material
- Silver Palladium (AgPd), Gold (Au)
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Number of Pins
- 8
- Weight
- 1g
- Operating Temperature
- -40°C~85°C
- Packaging
- Tape & Reel (TR)
- Series
- AGN
- Published
- 2000
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 4 (72 Hours)
- Termination
- Gull Wing
- ECCN Code
- EAR99
- Additional Feature
- RELEASE TIME WITH DIODE
- Voltage - Rated DC
- 110V
- Packing Method
- BOX; TAPE AND REEL
- Depth
- 7.4mm
- Reference Standard
- BSI; CSA; UL
- Termination Style
- Gull Wing
- Voltage - Rated AC
- 125V
- Physical Dimension
- 10.6mm x 5.7mm x 9mm
- Contact Current(DC)-Max
- 1A
- Sealing
- WATER PROOF
- Max Current Rating
- 1A
- Electrical Life
- 100000 Cycle(s)
- Throw Configuration
- DPDT
- Max Voltage Rating (DC)
- 110V
- Contact Form
- DPDT (2 Form C)
- Relay Type
- Telecom
- Contact Current(AC)-Max
- 1A
- Coil Resistance
- 1.03kOhm
- Contact (AC) Max Rating R Load
- 1A@125VAC
- Operate Time
- 4ms
- Coil Voltage
- 12VDC
- Coil Type
- Non Latching
- Switching Voltage
- 125VAC 110VDC -Max
- Coil Current
- 11.7mA
- Release Time
- 4 ms
- Contact (DC) Max Rating R Load
- 1A@110VDC
- Must Operate Voltage
- 9VDC
- Power Consumption
- 140mW
- Coil Power
- 140mW
- Must Release Voltage
- 1.2VDC
- Contact/Output Supply Type
- AC/DC
- Relay Action
- MOMENTARY
- Coil Voltage (DC)
- 12V
