Manufacturer No:

AFBR-57G5MZ

Manufacturer:

BROADCOM

Package:

Description:

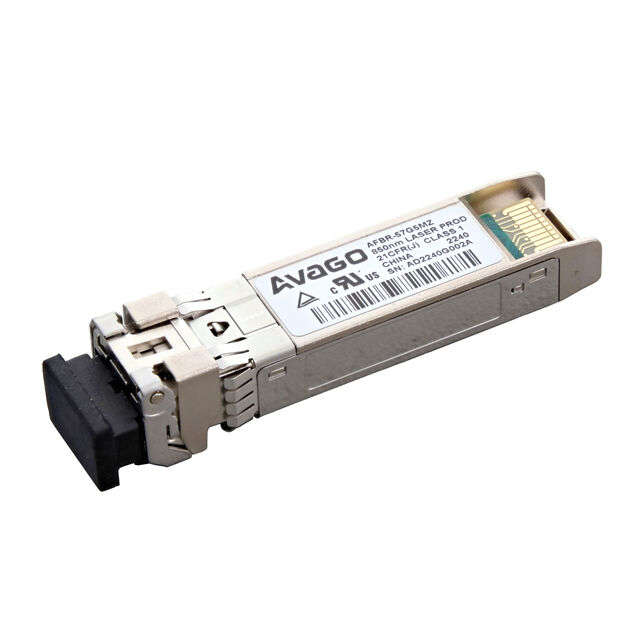

32GFC SFP28 SWL Fibre Channel Transceiver for Multi-Mode Optical Fiber, 100m

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :1236

Price not displayed? Please send an RFQ, and we will respond immediately.

AFBR-57G5MZ information

BROADCOM AFBR-57G5MZ technical specifications, attributes, parameters and parts with similar specifications to BROADCOM AFBR-57G5MZ.

  • Type
  • Parameter
  • Mfr
  • Broadcom Limited
  • Series
  • AFBR
  • Package
  • Tray
  • Product Status
  • Active
  • Data Rate
  • 28.05Gbps
  • Wavelength
  • 850nm
  • Applications
  • Fibre Channel Links
  • Voltage - Supply
  • 3.1V ~ 3.5V
  • Connector Type
  • LC Duplex
  • Mounting Type
  • Pluggable, SFP
  • Base Product Number
  • AFBR-57G5

Download datasheets and manufacturer documentation for BROADCOM AFBR-57G5MZ.

AFBR-57G5MZ Datasheet:

Overview



AFBR-57G5MZ optical transceiver supports high speed serial links over multi-mode optical fiber at signalling rates up to 28.05 Gb/s (the serial line rate of 32GFC). The product is compliant with Small Form Pluggable industry agreements SFP and SFP+ for mechanical and low speed electrical specifications. High speed electrical and optical specifications are compliant with ANSI Fibre Channel FC-PI-6.



The AFBR-57G5MZ is a multi-rate 850nm transceiver which ensures compliance with FC-PI-6 32GFC, 16GFC and 8GFC specifications. Per the requirements of 32GFC, internal clock and data recovery circuits (CDRs) are present on both electrical input and electrical output of this transceiver. These CDRs will lock at 28.05 Gb/s and 14.025Gb/s (32GFC and 16GFC) but must be bypassed for operation at 8.5 Gb/s (8GFC), accomplished by using two Rate Select inputs to configure transmit and receive sides. Transmitter and receiver can operate at different data rates, as is often seen during Fibre Channel speed negotiation.



Digital diagnostic monitoring information (DMI) is present in the AFBR-57G5MZ per the requirements of SFF-8472, providing real time monitoring information of transceiver laser, receiver and environment conditions over a SFF-8431 2-wire serial interface.



Features



• Compliant to RoHS directives

• 850 nm Vertical Cavity Surface Emitting Laser (VCSEL)

• Class 1 eye safe per IEC60825-1 and CDRH

• Wide temperature range (0°C to 70°C)

• LC duplex connector optical interface conforming to ANSI TIA/EIA604-10 (FOCIS 10A)

• Diagnostic features per SFF-8472 “DiagnosticMonitoring Interface for Optical Transceivers”

• Enhanced operational features including EWRAP, OWRAP and variable electrical EQ/emphasis settings



• Real time monitoring of:



1. Transmitter average optical power

2. Received average optical power

3. Laser bias current

4. Temperature

5. Supply Voltage



• SFP+ mechanical specifications per SFF-8432

• SFP+ compliant low speed interface



• Fibre Channel FC-PI-6 compliant high speed interface



1. 3200-M5-SN-S, 1600-M5-SN-S, 800-M5-SN-S

2. 3200-M5E-SN-I, 1600-M5E,SN-I, 800-M5E-SN-I

3. 3200-M5F-SN-I, 1600-M5F-SN-I, 800-M5F-SN-I



• Fibre Channel FC-PI-6 compliant optical link distances
