ADI ADUCM320BBCZI

Manufacturer No:

ADUCM320BBCZI

Manufacturer:

ADI

Package:

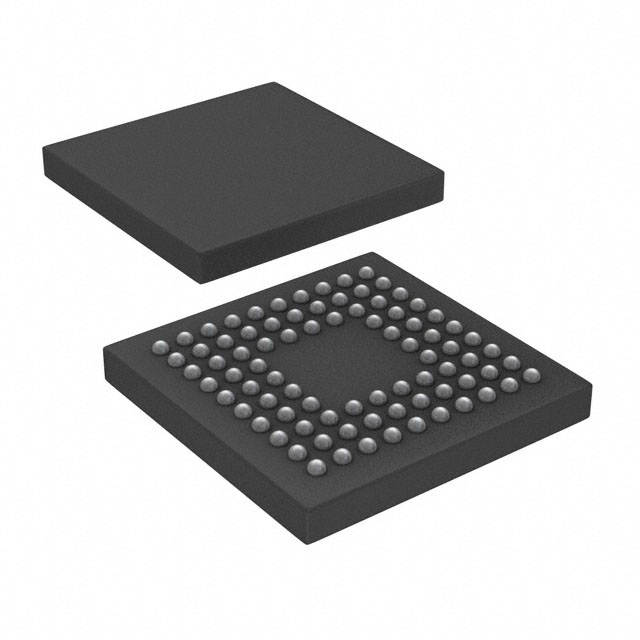

96-TFBGA, CSPBGA

Description:

256KB 128K x 8 x 2 FLASH ARM® Cortex®-M3 32-Bit Microcontroller ADuCM Series ADUCM320 96 Pin 80MHz 3.3V 96-TFBGA, CSPBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ADUCM320BBCZI information

ADI ADUCM320BBCZI technical specifications, attributes, parameters and parts with similar specifications to ADI ADUCM320BBCZI.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 4 weeks ago)

Factory Lead Time
20 Weeks

Contact Plating
Copper, Silver, Tin

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
96-TFBGA, CSPBGA

Number of Pins
96

Operating Temperature
-40°C~85°C TA

Packaging
Tray

Series
ADuCM

JESD-609 Code
e1

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
96

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Max Power Dissipation
1W

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Frequency
80MHz

Base Part Number
ADUCM320

Pin Count
96

Operating Supply Voltage
3.3V

Number of Channels
16

Interface
I2C, SPI, UART, USART

Memory Size
256kB

Oscillator Type
Internal

Number of I/O
40

RAM Size
32K x 8

Voltage - Supply (Vcc/Vdd)
2.9V~3.6V

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC

Core Processor
ARM® Cortex®-M3

Peripherals
DMA, POR, PWM, WDT

Program Memory Type
FLASH

Core Size
32-Bit

Program Memory Size
256KB 128K x 8 x 2

Connectivity
I2C, SPI, UART/USART

Bit Size
32

Data Converter
A/D 16x14b; D/A 12x12b

Watchdog Timer
Yes

Has ADC
YES

DMA Channels
YES

Data Bus Width
32b

Download datasheets and manufacturer documentation for ADI ADUCM320BBCZI.

Datasheets:

analogdevicesinc-aducm320bbczi-datasheets-0214.pdf

ConflictMineralStatement:

analogdeviceslineartechnology-lt5400bhms8e8trpbf-conflictmineralstatement-8771.pdf

ADUCM320BBCZI Overview

Packaged in a 96-TFBGA, CSPBGA format, this MCU is available in a compact size. There are 40 I/Os. Surface Mount is the mounting type of the Microcontroller that is attached to the panel. As the name implies, this Microcontroller is based on the 32-Bit core. There is a type of program memory called FLASH in the Microcontroller. The temperature range of this Microcontroller is within the range of -40°C~85°C TA. A ADuCM series electrical component is used in this application. Its program memory size is 256KB 128K x 8 x 2. ARM? Cortex?-M3 Core processors are used in MCU. Devices of this type belong to the MICROCONTROLLER, RISC power supply/socket/peripheral ICs category. During the manufacture of the IC chip, there is a number 96 of terminations. The part works on a 32-bit basis. There is a 3.3V volt supply output on the chip. A total of YES DMA channels are available. Its memory size is 256kB. ADUCM320 Microcontroller serves as a base part number to find alternatives. An effective performance can be achieved at a frequency of 80MHz. The device works in YES PWM channels. On the chip, there are 96 pins that can be accessed. There are 3 timers/counters in this device. A total of 96 pins are included in the package. It is equipped with a ARM core architecture which is integrated into it. It programs in 39 Programmable I/O. As far as UART channels are concerned, it has 1.

ADUCM320BBCZI Features

ADuCM series
Base part number of ADUCM320
96 Terminals
Based on the 32-Bit
Comes with 96 Pins

ADUCM320BBCZI Applications

There are a lot of Analog Devices Inc. ADUCM320BBCZI Microcontroller applications. ADUCM320BBCZI MCU is usually applied for Measurement and control field, Consumer electronics products, Network communication, mobile communication, Office automation equipment and computer peripherals, Industrial control Instrumentation and process control, Agriculture, transportation, Navigation control, Network application, Metering & measurement, Day to day life, Safety, Medical instruments and Automobile industry.

Digital cameras
Gas monitoring systems
Multi-meter
Medical instruments chromatographs
Leakage current tester
Playstation
Xbox
Projectors
Refrigerators
Instrument control
