ONSEMI ADT7462ACPZ-REEL
ONSEMI ADT7462ACPZ-REEL

ONSEMI ADT7462ACPZ-REEL

Manufacturer No:

ADT7462ACPZ-REEL

Manufacturer:

ONSEMI

Package:

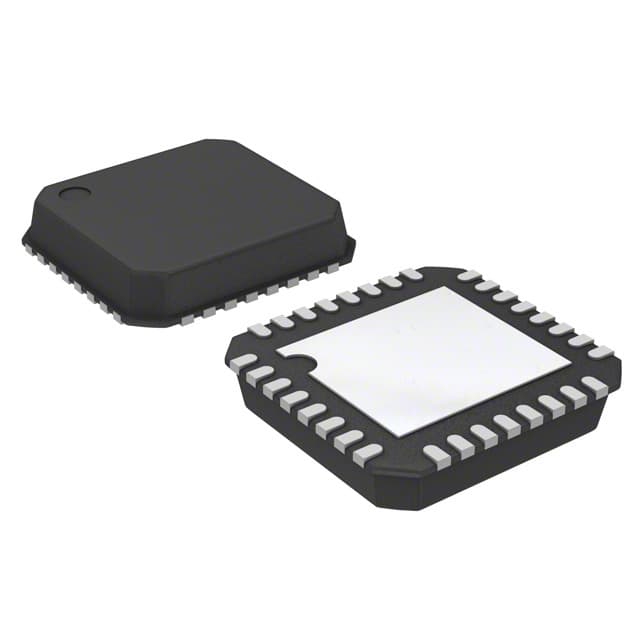

32-VFQFN Exposed Pad, CSP

Description:

System Fan Controller with Flexible Temperature and Voltage Monitor

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ADT7462ACPZ-REEL information

ONSEMI ADT7462ACPZ-REEL technical specifications, attributes, parameters and parts with similar specifications to ONSEMI ADT7462ACPZ-REEL.

  • Type
  • Parameter
  • Data Transmission Standard
  • SMBus
  • T Min (°C)
  • -40
  • MSL Temp (°C)
  • 260
  • Container Qty.
  • 5000
  • MSL Type
  • 3
  • Container Type
  • REEL
  • ICC Max (mA)
  • 4
  • VCC Min (V)
  • 3
  • VCC Max (V)
  • 5.5
  • T Max (°C)
  • 125
  • Package Type
  • LFCSP-32
  • Case Outline
  • 932AE

Download datasheets and manufacturer documentation for ONSEMI ADT7462ACPZ-REEL.

Datasheet:

Package Drawing:

The ADT7462 is a flexible systems monitor IC, suitable for use in a wide variety of applications. It can monitor temperature in up to three remote locations, as well as its ambient temperature. There are up to four PWM outputs. These can be used to control the speed of a cooling fan by varying the % duty cycle of the PWM drive signal applied to the fan. The ADT7462 supports high frequency PWM for 4-wire fans and low frequency PWM for 2-wire and 3-wire fans. Up to eight TACH inputs can be used to measure the speed of 3-wire and 4-wire fans. There are up to 13 voltage monitoring inputs, ranging from 12 V to 0.9 V.

Application

  • Thermal Management

End Product

  • Notebook and Desktop Computers
  • Game Consoles
  • RFID Readers
  • Multi-Channel Analog Receiver/Amplifier

Feature

  • One Local and up to Three Remote Temperature Channels, Series Resistance Cancellation on Remote Channels
  • Thermal Protection Using THERM Pins
  • Up to Four PWM Fan Drive Outputs, Supports Both High and Low Frequency PWM Drives
  • Up to Eight TACH Inputs Measures the Speed of 3-wire and 4-wire Fans
  • Automatic Fan Speed Control Loop Includes Dynamic TMIN Control
  • Monitors up to 13 Voltage Inputs
  • Monitors up to 7 VID Inputs Includes VID-on-fly Support
  • Bidirectional Reset
  • Chassis Intrusion Detect
  • SMBus 1.1- and SMBus 1.0-compatible
  • 3.3 V and 5 V Operation

User Guide
