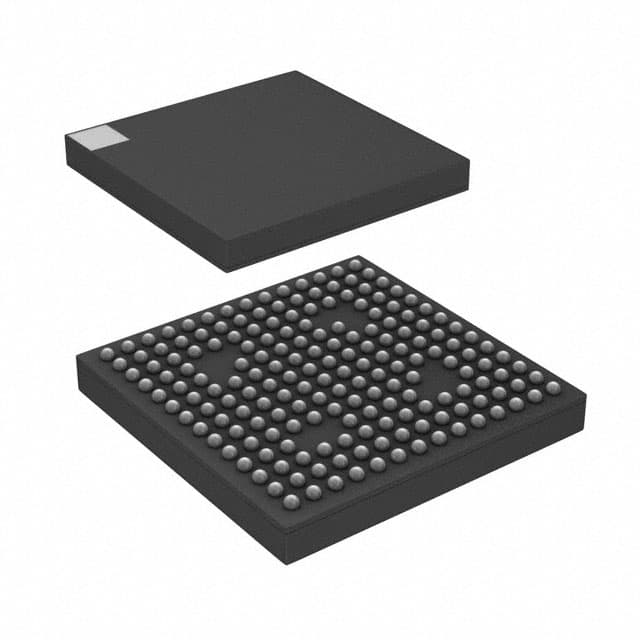

ADI ADSP-BF701KBCZ-2
ADI ADSP-BF701KBCZ-2

ADI ADSP-BF701KBCZ-2

Manufacturer No:

ADSP-BF701KBCZ-2

Manufacturer:

ADI

Package:

184-LFBGA, CSPBGA

Description:

0.8mm 512kB CPLD Blackfin® Series ADSP-BF701 184 Pin 1.8V 184-LFBGA, CSPBGA

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ADSP-BF701KBCZ-2 information

ADI ADSP-BF701KBCZ-2 technical specifications, attributes, parameters and parts with similar specifications to ADI ADSP-BF701KBCZ-2.

  • Type
  • Parameter
  • Lifecycle Status
  • PRODUCTION (Last Updated: 2 weeks ago)
  • Factory Lead Time
  • 8 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 184-LFBGA, CSPBGA
  • Number of Pins
  • 184
  • Operating Temperature
  • 0°C~70°C TA
  • Packaging
  • Tray
  • Series
  • Blackfin®
  • JESD-609 Code
  • e1
  • Pbfree Code
  • no
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 184
  • Type
  • Blackfin+
  • Terminal Finish
  • Tin/Silver/Copper (Sn/Ag/Cu)
  • Additional Feature
  • IT ALSO OPERATES AT 3.3V NOM SUPPLY
  • Technology
  • CMOS
  • Terminal Position
  • BOTTOM
  • Terminal Form
  • BALL
  • Peak Reflow Temperature (Cel)
  • 260
  • Supply Voltage
  • 1.8V
  • Terminal Pitch
  • 0.8mm
  • Time@Peak Reflow Temperature-Max (s)
  • 30
  • Pin Count
  • 184
  • Supply Voltage-Max (Vsup)
  • 1.9V
  • Supply Voltage-Min (Vsup)
  • 1.7V
  • Interface
  • CAN, DSPI, EBI/EMI, I2C, PPI, QSPI, SD/SDIO, SPI, SPORT, UART/USART, USB OTG
  • Memory Size
  • 512kB
  • RAM Size
  • 128kB
  • Max Frequency
  • 200MHz
  • Boundary Scan
  • YES
  • Low Power Mode
  • YES
  • Format
  • FIXED POINT
  • Voltage - I/O
  • 1.8V 3.3V
  • Number of UART Channels
  • 2
  • Barrel Shifter
  • YES
  • Internal Bus Architecture
  • MULTIPLE
  • Non-Volatile Memory
  • ROM (512kB)
  • Voltage - Core
  • 1.10V
  • Height Seated (Max)
  • 1.7mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Contains Lead

Download datasheets and manufacturer documentation for ADI ADSP-BF701KBCZ-2.

Datasheets:

ConflictMineralStatement:

ADSP-BF701KBCZ-2 Overview


In electronic terms, it is a type of component that comes in the package of type 184-LFBGA, CSPBGA .Tray is the packaging method provided.Due to its Blackfin+ membership, it is ideal for a wide range of applications.The mounting of the device is done in the direction of Surface Mount.As long as it is operated at the temperature of 0°C~70°C TA, it will operate normally.1.8V 3.3V refers to the range of analog voltages that can be input or output.The Blackfin® series includes this digital signal processor.184 terminations are available for its use.1.8V is the supply voltage.184 component pins are present.Its configuration includes 184 pins.With its base part number of ADSP-BF701, many related parts can be identified.As a mounting method, it uses Surface Mount.512kB data can be stored in the memory of this device.Data format and transmission speed are configurable on 2 UART channels for asynchronous serial communication.This electronic part can also provide additional features to IT ALSO OPERATES AT 3.3V NOM SUPPLY.To ensure reliability, the frequency should not exceed 200MHz.

ADSP-BF701KBCZ-2 Features


Supplied in the 184-LFBGA, CSPBGA package


ADSP-BF701KBCZ-2 Applications


There are a lot of Analog Devices Inc.
ADSP-BF701KBCZ-2 DSP applications.


  • Speech processing
  • Radar
  • Seismology
  • Audio
  • Sonar
  • Voice recognition
  • Financial signals
  • Other sensor array processing
  • Spectral density estimation
  • Statistical signal processing
