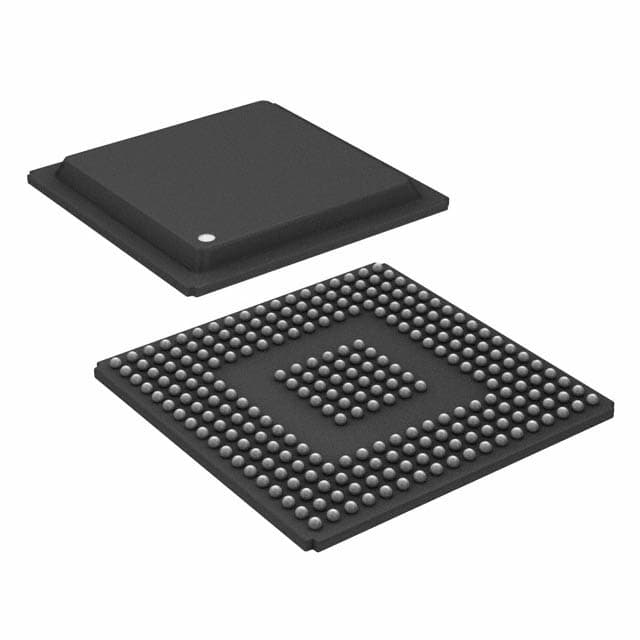

ADI ADSP-BF535PKB-300
Manufacturer No:
ADSP-BF535PKB-300
Manufacturer:
Package:
260-BBGA
Description:
1mm Lead, Tin 1.53.3V 308kB CPLD Blackfin® Series ADSP-BF535 260 Pin 300MHz 1.5V 260-BBGA
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
ADSP-BF535PKB-300 information
ADI ADSP-BF535PKB-300 technical specifications, attributes, parameters and parts with similar specifications to ADI ADSP-BF535PKB-300.
- Type
- Parameter
- Contact Plating
- Lead, Tin
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 260-BBGA
- Number of Pins
- 260
- Operating Temperature
- 0°C~70°C TA
- Packaging
- Tray
- Series
- Blackfin®
- JESD-609 Code
- e0
- Pbfree Code
- no
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 260
- ECCN Code
- 3A991.A.2
- Type
- Fixed Point
- Terminal Finish
- Tin/Lead/Silver (Sn/Pb/Ag)
- Subcategory
- Microprocessors
- Technology
- CMOS
- Terminal Position
- BOTTOM
- Terminal Form
- BALL
- Peak Reflow Temperature (Cel)
- 225
- Supply Voltage
- 1.5V
- Terminal Pitch
- 1mm
- Reach Compliance Code
- not_compliant
- Time@Peak Reflow Temperature-Max (s)
- 30
- Base Part Number
- ADSP-BF535
- Pin Count
- 260
- Qualification Status
- Not Qualified
- Power Supplies
- 1.53.3V
- Interface
- PCI, SPI, SSP, UART, USB
- Max Supply Voltage
- 3.45V
- Min Supply Voltage
- 950mV
- Memory Size
- 308kB
- Number of I/O
- 16
- RAM Size
- 32kB
- Bit Size
- 32
- Data Bus Width
- 32b
- Number of Timers/Counters
- 4
- Address Bus Width
- 26
- Core Architecture
- Blackfin
- Boundary Scan
- YES
- Low Power Mode
- YES
- Voltage - I/O
- 3.30V
- Barrel Shifter
- YES
- Internal Bus Architecture
- MULTIPLE
- Non-Volatile Memory
- External
- Voltage - Core
- 1.50V
Download datasheets and manufacturer documentation for ADI ADSP-BF535PKB-300.
Datasheets:
ConflictMineralStatement:
ADSP-BF535PKB-300 Overview
It is a kind of electronic component that comes in a package of 260-BBGA.Packaging is provided in the form of Tray.In addition to meeting a wide range of requirements, it is a member of Fixed Point.The machine is mounted in the way of Surface Mount in order to facilitate its operation.By operating the device at the temperature of 0°C~70°C TA, a normal operation is ensured.It refers to the analog voltage range of 3.30V that may be input or output.Digital signal processors such as this one are included in the Blackfin® series.In order to use it, it has 260 terminations.Using 1.5V as the supply voltage, it operates.260 components have pins.The configuration of this board includes 260 pins.The base part number ADSP-BF535 allows identification of a wide range of related parts.Specifically, the device is designed to operate at a frequency of 300MHz.Surface Mount is the method of mounting it.The characteristics of this device allow it to be placed in the subcategory of Microprocessors.Devices like this can be powered with as little as 950mV volts.It is capable of receiving a maximum voltage of 3.45V.There is a memory on this device that can store 308kB data.A 1.53.3V electric power source is used to power it.To measure time and count events externally, 4 timers/counters are used.The processor core uses the architecture of the Blackfin processor.A 16 I/O interface is present on the device.
ADSP-BF535PKB-300 Features
Supplied in the 260-BBGA package
4 timers/counters
16 I/Os
ADSP-BF535PKB-300 Applications
There are a lot of Analog Devices Inc.
ADSP-BF535PKB-300 DSP applications.
- Sonar
- Voice recognition
- Financial signals
- Other sensor array processing
- Spectral density estimation
- Statistical signal processing
- Digital image processing, data compression
- Video coding, audio coding
- Image compression
- Signal processing for telecommunications
