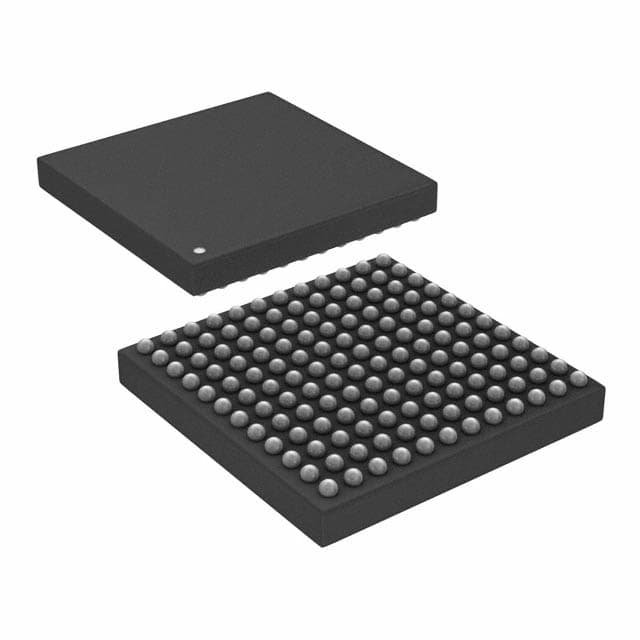

ADI ADSP-2191MKCAZ-160
Manufacturer No:
ADSP-2191MKCAZ-160
Manufacturer:
Package:
144-LFBGA
Description:
0.8mm CPLD ADSP-21xx Series ADSP-2191 144 Pin 160MHz 2.5V 144-LFBGA
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
ADSP-2191MKCAZ-160 information
ADI ADSP-2191MKCAZ-160 technical specifications, attributes, parameters and parts with similar specifications to ADI ADSP-2191MKCAZ-160.
- Type
- Parameter
- Lifecycle Status
- PRODUCTION (Last Updated: 3 months ago)
- Factory Lead Time
- 8 Weeks
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 144-LFBGA
- Number of Pins
- 144
- Operating Temperature
- 0°C~70°C TA
- Packaging
- Tray
- Series
- ADSP-21xx
- JESD-609 Code
- e1
- Pbfree Code
- no
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 144
- Type
- Fixed Point
- Terminal Finish
- Tin/Silver/Copper (Sn/Ag/Cu)
- Technology
- CMOS
- Terminal Position
- BOTTOM
- Terminal Form
- BALL
- Peak Reflow Temperature (Cel)
- 260
- Supply Voltage
- 2.5V
- Terminal Pitch
- 0.8mm
- Frequency
- 160MHz
- Time@Peak Reflow Temperature-Max (s)
- 40
- Pin Count
- 144
- Operating Supply Voltage
- 2.5V
- Interface
- Host Interface, SPI, SSP, UART
- Max Supply Voltage
- 3.6V
- Min Supply Voltage
- 2.37V
- RAM Size
- 160kB
- Memory Type
- RAM
- Number of Bits
- 16
- Data Bus Width
- 16b
- Number of Timers/Counters
- 3
- Boundary Scan
- YES
- Low Power Mode
- YES
- Voltage - I/O
- 3.00V 3.30V
- Number of UART Channels
- 1
- Barrel Shifter
- YES
- Internal Bus Architecture
- MULTIPLE
- Non-Volatile Memory
- External
- Voltage - Core
- 2.50V
- Number of SPI Channels
- 2
- Height
- 850?m
- Length
- 10mm
- Width
- 10mm
- REACH SVHC
- No SVHC
Download datasheets and manufacturer documentation for ADI ADSP-2191MKCAZ-160.
Datasheets:
Other Related Documents:
ConflictMineralStatement:
ADSP-2191MKCAZ-160 Overview
Basically, it is a type of electronic component that is available in a 144-LFBGA package.A packaging way of Tray is provided.Fixed Point's wide range of applications makes it ideal for a wide variety of applications.Surface Mount is the direction in which it is mounted.It is important that the device is operated at a temperature of 0°C~70°C TA in order to ensure its normal functioning.As the name implies, the analog voltage range of 3.00V 3.30V refers to the voltage that can be inserted or removed.This digital signal processor is part of the ADSP-21xx series.For its use, it has 144 terminations.The supply voltage is 2.5V.Pins are present on the 144 component.In its configuration, there are 144 pins.There are a number of related parts that can be identified using the base part number ADSP-2191.In order for the device to operate at 160MHz frequency, there is a specific design.The mounting method is Surface Mount.This device can be powered by voltages as low as 2.37V.3.6V is the maximum voltage that can be supplied to this device.A voltage of 2.5V is used as the supply voltage.Data formats and transmission speeds are configurable for 1 UART channels used for asynchronous serial communication.Counting external events and measuring time are done by 3 timers/counters.As far as memory type is concerned, it uses RAM.16 information is stored on the device.2 SPI channels are used for short-range communication in this embedded system.
ADSP-2191MKCAZ-160 Features
Supplied in the 144-LFBGA package
Operating supply voltage of 2.5V
3 timers/counters
ADSP-2191MKCAZ-160 Applications
There are a lot of Analog Devices Inc.
ADSP-2191MKCAZ-160 DSP applications.
- Radar
- Seismology
- Audio
- Sonar
- Voice recognition
- Financial signals
- Other sensor array processing
- Spectral density estimation
- Statistical signal processing
- Digital image processing, data compression
