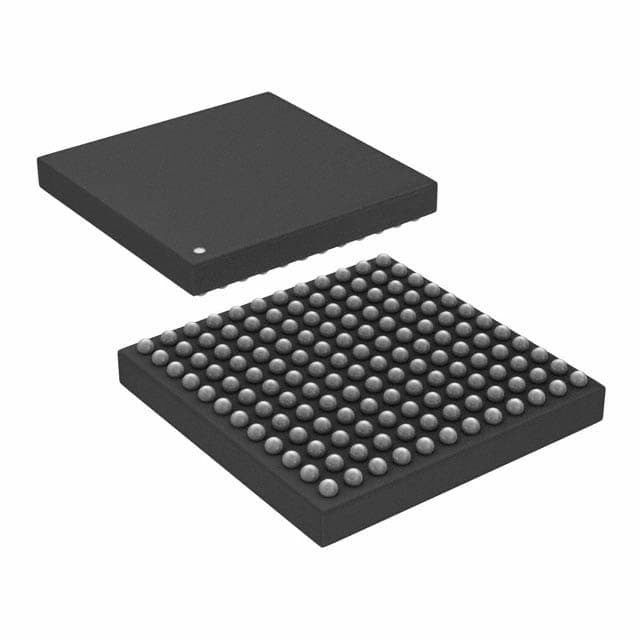

ADI ADSP-2186MKCAZ-300
Manufacturer No:
ADSP-2186MKCAZ-300
Manufacturer:
Package:
144-LFBGA
Description:
0.8mm Copper, Silver, Tin CPLD ADSP-21xx Series ADSP-2186 144 Pin 75MHz 2.5V 144-LFBGA
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
ADSP-2186MKCAZ-300 information
ADI ADSP-2186MKCAZ-300 technical specifications, attributes, parameters and parts with similar specifications to ADI ADSP-2186MKCAZ-300.
- Type
- Parameter
- Contact Plating
- Copper, Silver, Tin
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 144-LFBGA
- Number of Pins
- 144
- Operating Temperature
- 0°C~70°C TA
- Packaging
- Tray
- Series
- ADSP-21xx
- JESD-609 Code
- e1
- Pbfree Code
- no
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 144
- Type
- Fixed Point
- Terminal Finish
- TIN SILVER COPPER
- Technology
- CMOS
- Terminal Position
- BOTTOM
- Terminal Form
- BALL
- Peak Reflow Temperature (Cel)
- 260
- Supply Voltage
- 2.5V
- Terminal Pitch
- 0.8mm
- Frequency
- 75MHz
- Time@Peak Reflow Temperature-Max (s)
- 40
- Base Part Number
- ADSP-2186
- Qualification Status
- Not Qualified
- Operating Supply Voltage
- 2.5V
- Interface
- Host Interface, Serial Port
- Max Supply Voltage
- 3.6V
- Min Supply Voltage
- 2.37V
- RAM Size
- 40kB
- Data Bus Width
- 16b
- Number of Timers/Counters
- 1
- Address Bus Width
- 14
- Boundary Scan
- NO
- Low Power Mode
- YES
- Voltage - I/O
- 3.30V
- Barrel Shifter
- YES
- Internal Bus Architecture
- MULTIPLE
- Non-Volatile Memory
- External
- Voltage - Core
- 2.50V
- RoHS Status
- RoHS Compliant
- Lead Free
- Contains Lead
Download datasheets and manufacturer documentation for ADI ADSP-2186MKCAZ-300.
Other Related Documents:
ConflictMineralStatement:
ADSP-2186MKCAZ-300 Overview
The 144-LFBGA package contains these electronic components.Packaging way Tray is provided.The Fixed Point family provides a wide range of applications.There is a mounting point for it along the direction of Surface Mount.At the temperature of 0°C~70°C TA, the device is guaranteed to operate normally.In analog circuits, the analog voltage range 3.30V represents the voltage range that is available for input or output.ADSP-21xx series digital signal processors contain this digital signal processor.The 144 terminations are used for its uses.It works with a voltage of 2.5V as a supply voltage.Pins are located on the 144 component.In its configuration, it contains 144 pins.Several related parts can be identified using its base part number, ADSP-2186.The device operates at the frequency of 75MHz in accordance with a specific design.In order to mount it, it utiliSurface Mountes the Surface Mount method.This device operates at a voltage as low as 2.37V.Devices like this can be powered by voltages up to 3.6V.In order for it to operate, 2.5V is the supply voltage.External events are tracked and measured with 1 timers/counters.
ADSP-2186MKCAZ-300 Features
Supplied in the 144-LFBGA package
Operating supply voltage of 2.5V
1 timers/counters
ADSP-2186MKCAZ-300 Applications
There are a lot of Analog Devices Inc.
ADSP-2186MKCAZ-300 DSP applications.
- Voice recognition
- Financial signals
- Other sensor array processing
- Spectral density estimation
- Statistical signal processing
- Digital image processing, data compression
- Video coding, audio coding
- Image compression
- Signal processing for telecommunications
- Control systems
