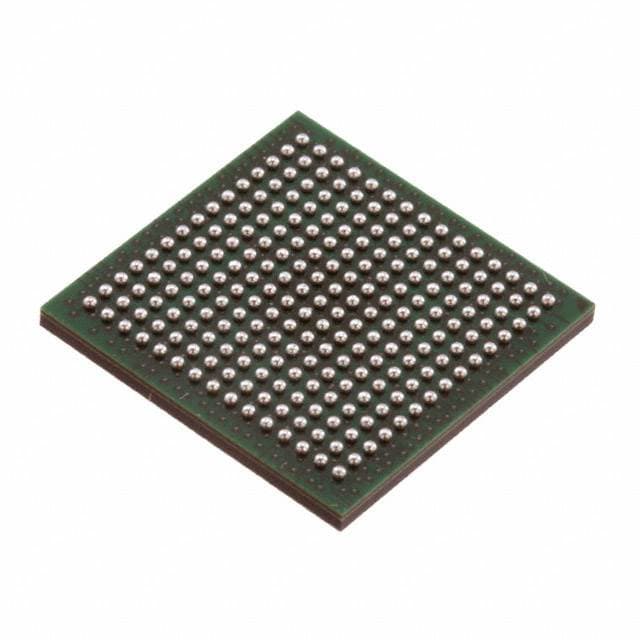

ADI ADSP-21161NCCA-100
Manufacturer No:
ADSP-21161NCCA-100
Manufacturer:
Package:
225-BGA, CSPBGA
Description:
1mm 1.83.3V 1MB CPLD SHARC® Series ADSP-21161 225 Pin 100MHz 1.8V 225-BGA, CSPBGA
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
ADSP-21161NCCA-100 information
ADI ADSP-21161NCCA-100 technical specifications, attributes, parameters and parts with similar specifications to ADI ADSP-21161NCCA-100.
- Type
- Parameter
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 225-BGA, CSPBGA
- Number of Pins
- 225
- Operating Temperature
- -40°C~105°C TC
- Packaging
- Tray
- Series
- SHARC®
- JESD-609 Code
- e0
- Pbfree Code
- no
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 225
- ECCN Code
- 3A991.A.2
- Type
- Floating Point
- Terminal Finish
- Tin/Lead/Silver (Sn/Pb/Ag)
- HTS Code
- 8542.31.00.01
- Subcategory
- Digital Signal Processors
- Technology
- CMOS
- Terminal Position
- BOTTOM
- Terminal Form
- BALL
- Supply Voltage
- 1.8V
- Terminal Pitch
- 1mm
- Frequency
- 100MHz
- Base Part Number
- ADSP-21161
- Operating Supply Voltage
- 1.89V
- Power Supplies
- 1.83.3V
- Interface
- Host Interface, Link Port, Serial Port
- Max Supply Voltage
- 3.47V
- Min Supply Voltage
- 1.71V
- Memory Size
- 1MB
- RAM Size
- 128kB
- Number of Bits
- 32
- Bit Size
- 32
- Data Bus Width
- 32b
- Core Architecture
- SHARC
- Boundary Scan
- YES
- Low Power Mode
- NO
- Voltage - I/O
- 3.30V
- Barrel Shifter
- YES
- Internal Bus Architecture
- MULTIPLE
- Non-Volatile Memory
- External
- Voltage - Core
- 1.80V
- Height
- 1.3mm
- Length
- 17mm
- Width
- 17mm
- REACH SVHC
- Unknown
- Radiation Hardening
- No
Download datasheets and manufacturer documentation for ADI ADSP-21161NCCA-100.
Other Related Documents:
PCN Obsolescence/ EOL:
ConflictMineralStatement:
ADSP-21161NCCA-100 Overview
An electronic component available in package 225-BGA, CSPBGA.Tray packaging is provided for it.Its Floating Point status makes it ideal for a wide range of applications.It is mounted in the direction of Surface Mount as shown in the image below.If it is operating at the temperature of -40°C~105°C TC, then it will be operating normally.This refers to the analog voltage range that can be input or output from 3.30V.There are several digital signal processors in the SHARC® series, including this one.In terms of its uses, it has 225 terminations.1.8V provides the supply voltage for it.The 225 component has pins.There are 225 pins in its configuration.The base part number ADSP-21161 can be used to identify many associated parts.To operate at 100MHz frequency, the device has a specific design.Mounting is accomplished using Surface Mount.According to its specific characteristics, this device is classified in the subcategory Digital Signal Processors.In this device, the minimum voltage is 1.71V.It can be supplied with a maximum voltage of 3.47V.A supply voltage of 1.89V is required for its operation.Its memory can be used to store 1MB data.It receives electricity from 1.83.3V.An architecture of SHARC is adopted by this processor core.This device stores 32 information.
ADSP-21161NCCA-100 Features
Supplied in the 225-BGA, CSPBGA package
Operating supply voltage of 1.89V
ADSP-21161NCCA-100 Applications
There are a lot of Analog Devices Inc.
ADSP-21161NCCA-100 DSP applications.
- Financial signals
- Other sensor array processing
- Spectral density estimation
- Statistical signal processing
- Digital image processing, data compression
- Video coding, audio coding
- Image compression
- Signal processing for telecommunications
- Control systems
- Biomedical engineering
