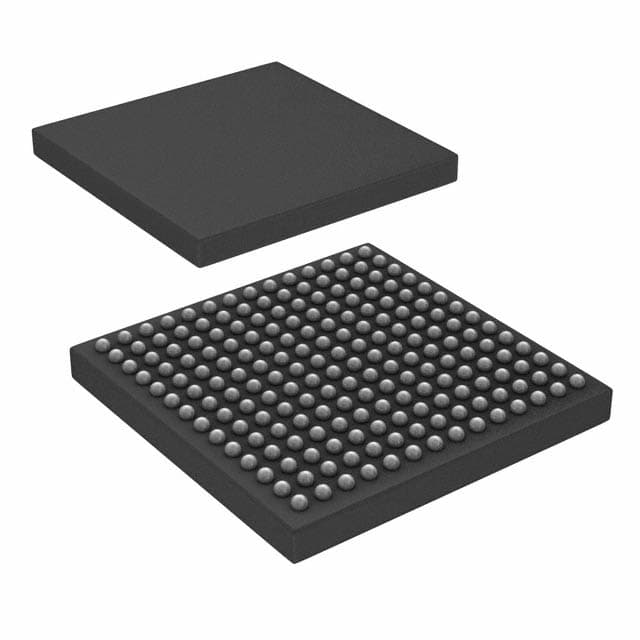

ADI ADSP-21065LKCAZ264
Manufacturer No:
ADSP-21065LKCAZ264
Manufacturer:
Package:
196-BGA, CSPBGA
Description:
1mm Copper, Silver, Tin CPLD SHARC® Series ADSP-21065 196 Pin 66MHz 3.3V 196-BGA, CSPBGA
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
ADSP-21065LKCAZ264 information
ADI ADSP-21065LKCAZ264 technical specifications, attributes, parameters and parts with similar specifications to ADI ADSP-21065LKCAZ264.
- Type
- Parameter
- Lifecycle Status
- PRODUCTION (Last Updated: 1 week ago)
- Factory Lead Time
- 8 Weeks
- Contact Plating
- Copper, Silver, Tin
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 196-BGA, CSPBGA
- Number of Pins
- 196
- Operating Temperature
- 0°C~85°C TC
- Packaging
- Tray
- Series
- SHARC®
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 196
- Type
- Floating Point
- Subcategory
- Digital Signal Processors
- Technology
- CMOS
- Terminal Position
- BOTTOM
- Terminal Form
- BALL
- Supply Voltage
- 3.3V
- Terminal Pitch
- 1mm
- Frequency
- 66MHz
- Base Part Number
- ADSP-21065
- Pin Count
- 196
- Interface
- Host Interface, Serial Port
- Max Supply Voltage
- 3.6V
- Min Supply Voltage
- 3.13V
- RAM Size
- 68kB
- Number of Bits
- 32
- Bit Size
- 32
- Data Bus Width
- 32b
- Number of Timers/Counters
- 2
- Address Bus Width
- 24
- Core Architecture
- SHARC
- Boundary Scan
- YES
- Low Power Mode
- NO
- RAM (words)
- 17408
- Voltage - I/O
- 3.30V
- Barrel Shifter
- YES
- Internal Bus Architecture
- MULTIPLE
- Non-Volatile Memory
- External
- On Chip Data RAM
- 64kB
- Clock Rate
- 60MHz
- Length
- 15mm
- Height Seated (Max)
- 1.9mm
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for ADI ADSP-21065LKCAZ264.
Other Related Documents:
ConflictMineralStatement:
ADSP-21065LKCAZ264 Overview
An electronic component available in package 196-BGA, CSPBGA.Tray packaging is provided for it.Its Floating Point status makes it ideal for a wide range of applications.It is mounted in the direction of Surface Mount as shown in the image below.If it is operating at the temperature of 0°C~85°C TC, then it will be operating normally.This refers to the analog voltage range that can be input or output from 3.30V.There are several digital signal processors in the SHARC® series, including this one.In terms of its uses, it has 196 terminations.3.3V provides the supply voltage for it.The 196 component has pins.There are 196 pins in its configuration.The base part number ADSP-21065 can be used to identify many associated parts.To operate at 66MHz frequency, the device has a specific design.Mounting is accomplished using Surface Mount.According to its specific characteristics, this device is classified in the subcategory Digital Signal Processors.In this device, the minimum voltage is 3.13V.It can be supplied with a maximum voltage of 3.6V.A supply voltage of 3.3V is required for its operation.Timers and counters that measure time and count external events are also called 2 timers and counters.An architecture of SHARC is adopted by this processor core.This device stores 32 information.
ADSP-21065LKCAZ264 Features
Supplied in the 196-BGA, CSPBGA package
Operating supply voltage of 3.3V
2 timers/counters
ADSP-21065LKCAZ264 Applications
There are a lot of Analog Devices Inc.
ADSP-21065LKCAZ264 DSP applications.
- Financial signals
- Other sensor array processing
- Spectral density estimation
- Statistical signal processing
- Digital image processing, data compression
- Video coding, audio coding
- Image compression
- Signal processing for telecommunications
- Control systems
- Biomedical engineering
