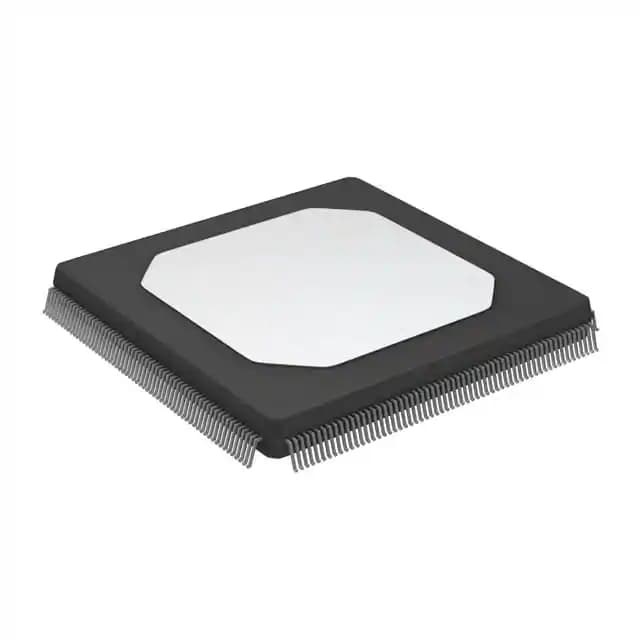

ADI ADSP-21062LKSZ-160

Manufacturer No:

ADSP-21062LKSZ-160

Manufacturer:

ADI

Package:

240-BFQFP Exposed Pad

Description:

0.5mm CPLD SHARC® Series ADSP-21062 240 Pin 40MHz 3.3V 240-BFQFP Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ADSP-21062LKSZ-160 information

ADI ADSP-21062LKSZ-160 technical specifications, attributes, parameters and parts with similar specifications to ADI ADSP-21062LKSZ-160.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 1 week ago)

Factory Lead Time
12 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
240-BFQFP Exposed Pad

Number of Pins
240

Operating Temperature
0°C~85°C TC

Packaging
Tray

Series
SHARC®

JESD-609 Code
e3

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
240

Type
Floating Point

Terminal Finish
Matte Tin (Sn)

Subcategory
Digital Signal Processors

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Frequency
40MHz

Base Part Number
ADSP-21062

Pin Count
240

Operating Supply Voltage
3.3V

Interface
Host Interface, Link Port, Serial Port

Max Supply Voltage
3.45V

Min Supply Voltage
3.15V

RAM Size
256kB

Number of Bits
32

Supply Current-Max
530mA

Bit Size
32

Data Bus Width
32b

Number of Timers/Counters
1

Address Bus Width
32

Core Architecture
SHARC

Boundary Scan
YES

Low Power Mode
YES

Integrated Cache
NO

RAM (words)
2000000

Voltage - I/O
3.30V

Number of Serial I/Os
2

Number of External Interrupts
3

Barrel Shifter
YES

Internal Bus Architecture
MULTIPLE

Download datasheets and manufacturer documentation for ADI ADSP-21062LKSZ-160.

Datasheets:

analogdevicesinc-adsp21060ksz160-datasheets-3035.pdf

ConflictMineralStatement:

analogdeviceslineartechnology-lt5400bhms8e8trpbf-conflictmineralstatement-8771.pdf

ADSP-21062LKSZ-160 Overview

It is a kind of electronic component that comes in a package of 240-BFQFP Exposed Pad.Packaging is provided in the form of Tray.In addition to meeting a wide range of requirements, it is a member of Floating Point.The machine is mounted in the way of Surface Mount in order to facilitate its operation.By operating the device at the temperature of 0°C~85°C TC, a normal operation is ensured.It refers to the analog voltage range of 3.30V that may be input or output.Digital signal processors such as this one are included in the SHARC® series.In order to use it, it has 240 terminations.Using 3.3V as the supply voltage, it operates.240 components have pins.The configuration of this board includes 240 pins.The base part number ADSP-21062 allows identification of a wide range of related parts.Specifically, the device is designed to operate at a frequency of 40MHz.Surface Mount is the method of mounting it.The characteristics of this device allow it to be placed in the subcategory of Digital Signal Processors.Devices like this can be powered with as little as 3.15V volts.It is capable of receiving a maximum voltage of 3.45V.3.3V is the supply voltage for this device.To measure time and count events externally, 1 timers/counters are used.The processor core uses the architecture of the SHARC processor.External sources are causing 3 interrupts.Upon opening the device, there are 32 pieces of information stored.To prevent CPU overload, 10 DMA channels are used to transfer data.Using serial 2 I/Os, devices can communicate.

ADSP-21062LKSZ-160 Features

Supplied in the 240-BFQFP Exposed Pad package
Operating supply voltage of 3.3V
1 timers/counters
3 external interrupts

ADSP-21062LKSZ-160 Applications

There are a lot of Analog Devices Inc.
ADSP-21062LKSZ-160 DSP applications.

Sonar
Voice recognition
Financial signals
Other sensor array processing
Spectral density estimation
Statistical signal processing
Digital image processing, data compression
Video coding, audio coding
Image compression
Signal processing for telecommunications
