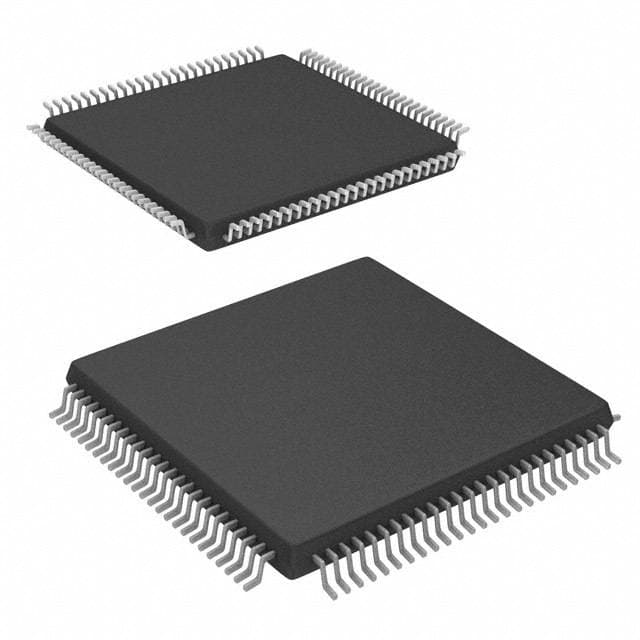

TI ADS7869IPZTG4

Manufacturer No:

ADS7869IPZTG4

Manufacturer:

Package:

TQFP

Description:

Special Purpose ADCs/DACs TQFP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ADS7869IPZTG4 information

TI ADS7869IPZTG4 technical specifications, attributes, parameters and parts with similar specifications to TI ADS7869IPZTG4.

Type
Parameter

Contact Plating
Gold

Package / Case
TQFP

Surface Mount
YES

Number of Pins
100

JESD-609 Code
e4

Moisture Sensitivity Level (MSL)
4 (72 Hours)

Number of Terminations
100

ECCN Code
EAR99

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.5mm

Pin Count
100

Number of Elements
3

Polarity
Bipolar

Temperature Grade
INDUSTRIAL

Interface
Parallel, SPI

Max Supply Voltage
5.5V

Min Supply Voltage
2.7V

Operating Supply Current
45mA

Nominal Supply Current
45mA

Power Dissipation
250mW

Number of Bits
12

Supply Type
Single

Resolution
1.5 B

Sampling Rate
1 Msps

Power Consumption
250mW

Integral Nonlinearity (INL)
2.5 LSB

Signal to Noise Ratio (SNR)
71 dB

Max Supply Voltage (DC)
5.5V

Min Supply Voltage (DC)
2.7V

Height
1mm

Length
14mm

Width
14mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for TI ADS7869IPZTG4.

ADS7869IPZTG4 Overview

ADCs/DACs is included in package TQFP.In total, there were 100 terminations.High performance is available here with 1 functions.There is a standard voltage that should be applied to this data acquisition unit of 5V.The number of pins is 100.Depending on your requirements, this might be used as a high resolution 12-bit data acquisition device.Pins 100 are included in the unit.Basic data acquisition elements consist of 3.Units are designed to operate at temperatures lower than 85°C.In order for the unit to operate properly, the minimum operating temperature must be -40°C.It is recommended that the maximum supply voltage be rated at 5.5V.In order to use it, it must be supplied with a power supply that is at least 2.7V.

ADS7869IPZTG4 Features

12-Bit acquisition unit

ADS7869IPZTG4 Applications

There are a lot of Texas Instruments
ADS7869IPZTG4 ADCs/DACs applications.

Music recording
Digital signal processing
Scientific instruments
Rotary encoder
Displaying
Transducer
Microcontrollers.
Digital Storage Oscilloscope
Scientific instruments.
Music reproduction technology
