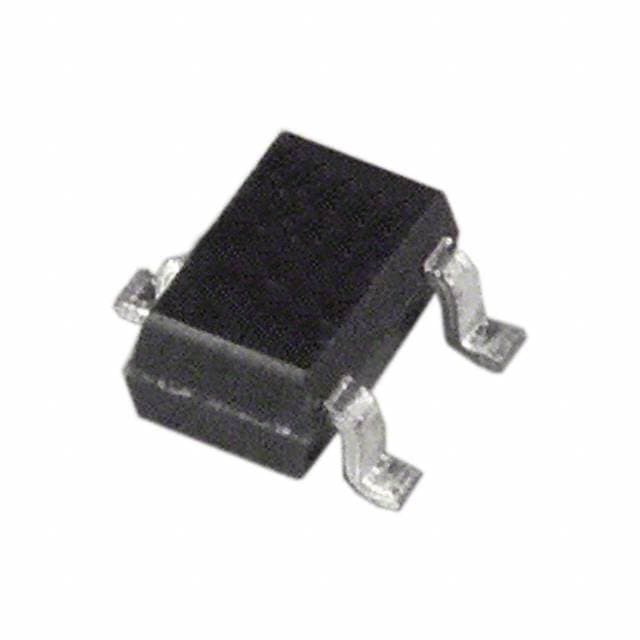

ADI ADR5043AKSZ-R2

Manufacturer No:

ADR5043AKSZ-R2

Manufacturer:

ADI

Package:

SC-70, SOT-323

Description:

-40°C~125°C TA Fixed 0.65mm PMIC ADR504 Series ADR5043 SC-70, SOT-323

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ADR5043AKSZ-R2 information

ADI ADR5043AKSZ-R2 technical specifications, attributes, parameters and parts with similar specifications to ADI ADR5043AKSZ-R2.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
SC-70, SOT-323

Surface Mount
YES

Number of Pins
3

Operating Temperature
-40°C~125°C TA

Packaging
Tape & Reel (TR)

Series
ADR504

Tolerance
±0.2%

JESD-609 Code
e3

Pbfree Code
no

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
3

ECCN Code
EAR99

Temperature Coefficient
100ppm/°C

Terminal Finish
Matte Tin (Sn)

Subcategory
Voltage References

Technology
BIPOLAR

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
3

Number of Outputs
1

Output Voltage
3V

Output Type
Fixed

Max Output Current
15mA

Trim/Adjustable Output
YES

Analog IC - Other Type
TWO TERMINAL VOLTAGE REFERENCE

Max Output Voltage
3V

Reference Voltage
3V

Reference Type
Shunt

Min Output Voltage
3V

Temp Coef of Voltage-Max
100 ppm/°C

Current - Cathode
60?A

Noise - 0.1Hz to 10Hz
4.3?Vrms

Noise - 10Hz to 10kHz
180?Vrms

Height
1mm

Length
2.2mm

Width
1.35mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for ADI ADR5043AKSZ-R2.

Datasheets:

analogdevicesinc-adr5041akszreel7-datasheets-9945.pdf

ConflictMineralStatement:

analogdeviceslineartechnology-lt5400bhms8e8trpbf-conflictmineralstatement-8771.pdf

ADR5043AKSZ-R2 Overview

The reference voltage makes use of a handy SC-70, SOT-323 package.This program utilizes the handy Shunt package.The reference voltage is enclosed in the Tape & Reel (TR) external packaging.3 terminations with various functions.±0.2% tolerance for precise voltage reference.TWO TERMINAL VOLTAGE REFERENCE analog IC is coupled with the reference voltage.It outputs 3V voltage according to the test statistics.It is sufficient to generate 1 outputs. It can handle Fixed output (s).The voltage reference ic includes 3 pins.Reflow soldering should be performed at a temperature of 260.3 pins are settled in the voltage reference ic.Surface Mount is available for demanding PCB design.Qualified to work within -40°C~125°C TA.As a type of Voltage References, the voltage reference circuit is used in various applications.Other relevant parts can be found by searching "ADR5043".You cannot expect output current higher greater than 15mA from the reference voltage.As per the datasheet, the voltage reference ic can output 3V voltage at its maximum.Generally, 60?A is what its cathode current should be.The lowest voltage output from the voltage reference ic is 3V lower than 3V.Does the voltage reference ic contain Substances of Very High Concern (SVHC)? The answer is No SVHC.This voltage reference can output a voltage of 3V regardless of variations in external conditions.It is a gadget from the ADR504 series.

ADR5043AKSZ-R2 Features

±0.2% Tolerance
TWO TERMINAL VOLTAGE REFERENCE Analog IC
Peak Reflow Temperature: 260
Reference Voltage: 3V

ADR5043AKSZ-R2 Applications

There are a lot of Analog Devices Inc.
ADR5043AKSZ-R2 Voltage Reference applications.

Portable, battery-powered equipment
Cellular phones, notebook computers, PDAs, GPSs, and DMMs
Computer workstations
Suitable for use with a wide range of video RAMDACs
Smart industrial transmitters
PCMCIA cards
Automotive
3 V/5 V, 8-bit to 12-bit data converters
Precision data acquisition systems
High resolution converters
