ADI ADP8870ACBZ-R7

Manufacturer No:

ADP8870ACBZ-R7

Manufacturer:

ADI

Package:

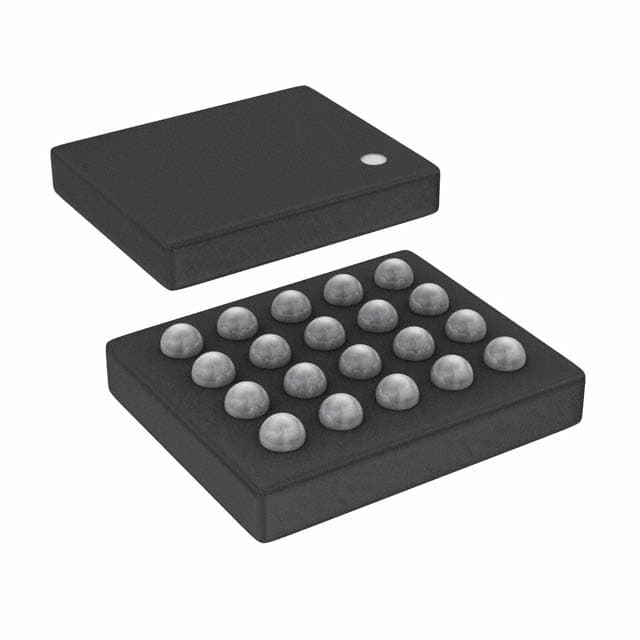

20-UFBGA, WLCSP

Description:

3.6V 0.4mm PMIC ADP8870 20 Pin 3.6V 20-UFBGA, WLCSP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ADP8870ACBZ-R7 information

ADI ADP8870ACBZ-R7 technical specifications, attributes, parameters and parts with similar specifications to ADI ADP8870ACBZ-R7.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 1 week ago)

Factory Lead Time
12 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
20-UFBGA, WLCSP

Number of Pins
20

Packaging
Tape & Reel (TR)

JESD-609 Code
e1

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
20

ECCN Code
EAR99

Type
DC DC Regulator

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Applications
Backlight

HTS Code
8542.39.00.01

Subcategory
Display Drivers

Technology
DMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Supply Voltage
3.6V

Terminal Pitch
0.4mm

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
ADP8870

Pin Count
20

Number of Outputs
7

Qualification Status
Not Qualified

Output Voltage
5.5V

Max Output Current
240mA

Power Supplies
3.6V

Temperature Grade
INDUSTRIAL

Max Supply Voltage
5.5V

Min Supply Voltage
2.5V

Output Current
60mA

Topology
Switched Capacitor (Charge Pump)

Min Input Voltage
2.5V

Max Input Voltage
5.5V

Output Current per Channel
60mA

Current - Output / Channel
30mA 60mA

Internal Switch(s)
Yes

fmax-Min
0.06 MHz

Dimming
PWM

Number of Segments
9

Download datasheets and manufacturer documentation for ADI ADP8870ACBZ-R7.

ADP8870ACBZ-R7 Overview

There is a 20-UFBGA, WLCSP package on the board that is used to save space. The LED driver's design uses 7 outputs.Mounting is done according to the Surface Mount method.With high efficiency and reliable performance, it emerges as a DC DC Regulator.There are significant benefits for Backlight.It is designed to work with 20 terminations.Its configuration is based on 20 pins.9 segments exist.The mount is on its way to Surface Mount.The LED driver can be found under the base part number ADP8870.An acceptable maximum value for the supply voltage is 5.5V.20 pins are included in it.As a result of its characteristics, it is also classified as Display Drivers.The input voltage must be minimally 2.5V.With a minimal supply voltage of 2.5V, it reaches the highest efficiency levels.It reaches 5.5V when the maximum supply current is allowed.It is important that the operating temperature not exceed 85°C in order to ensure stable operation.In this case, the load can only be supplied with 60mA current.Stable operation requires an operating temperature greater than -40°C.Even when operating at a maximal output current of 240mA, it is capable of delivering all the benefits of a LED driver.The output voltage is 5.5V.

ADP8870ACBZ-R7 Features

Available in the 20-UFBGA, WLCSP package
Supply voltage of 3.6V
Output voltage of 5.5V

ADP8870ACBZ-R7 Applications

There are a lot of Analog Devices Inc.
ADP8870ACBZ-R7 LED Driver ICs applications.

Refrigeration lighting
Portable lighting
Gallery lighting
Museum lighting
High-end retail lighting
Medical surgery lighting
Replacement lamps
Panel lighting
Down lights
Linear fluorescent
