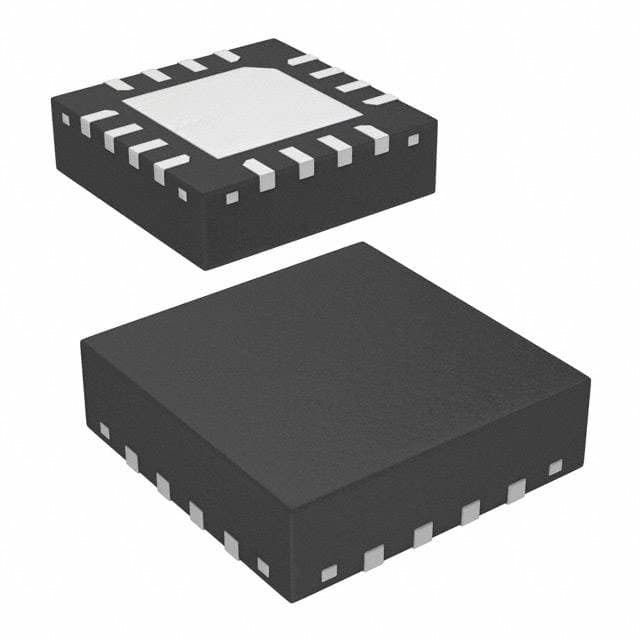

ADI ADP5090ACPZ-2-R7

Manufacturer No:

ADP5090ACPZ-2-R7

Manufacturer:

ADI

Package:

16-WFQFN Exposed Pad, CSP

Description:

ADP5090 16-WFQFN Exposed Pad, CSP Tape & Reel (TR) 16 Terminals 16 Pin

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ADP5090ACPZ-2-R7 information

ADI ADP5090ACPZ-2-R7 technical specifications, attributes, parameters and parts with similar specifications to ADI ADP5090ACPZ-2-R7.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 4 weeks ago)

Factory Lead Time
8 Weeks

Mounting Type
Surface Mount

Package / Case
16-WFQFN Exposed Pad, CSP

Surface Mount
YES

Number of Pins
16

Operating Temperature
-40°C~125°C TJ

Packaging
Tape & Reel (TR)

JESD-609 Code
e3

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
16

ECCN Code
EAR99

Terminal Finish
Tin (Sn)

HTS Code
8542.39.00.01

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
ADP5090

Pin Count
16

Fault Protection
Over Current, Over Temperature, Short Circuit

Battery Chemistry
Multi-Chemistry

Voltage - Supply (Max)
3.3V

Programmable Features
Voltage

Length
3mm

Height Seated (Max)
0.8mm

Width
3mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for ADI ADP5090ACPZ-2-R7.

Datasheets:

analogdevicesinc-adp50902evalz-datasheets-5202.pdf

ConflictMineralStatement:

analogdeviceslineartechnology-lt5400bhms8e8trpbf-conflictmineralstatement-8771.pdf

ADP5090ACPZ-2-R7 Overview

The Tape & Reel (TR) package contains it.It can be found in package 16-WFQFN Exposed Pad, CSP.The mounting type of the device is Surface Mount.Setting the temperature to -40°C~125°C TJ is the right thing to do.In order for this device to function, it utilizes an analog integrated circuit called BATTERY CHARGE CONTROLLER.You can find this device's related parts by searching the base part number ADP5090.It has a total of 16 terminations.Pins 16 are included.Among the programmable features are Voltage.In order for the product to function as intended, there are 16 pins that must be connected.There is a preference for devices with 3.3V maximum supply voltages.

ADP5090ACPZ-2-R7 Features

16-WFQFN Exposed Pad, CSP package

ADP5090ACPZ-2-R7 Applications

There are a lot of Analog Devices Inc.
ADP5090ACPZ-2-R7 Battery Chargers ICs applications.

Opportunity charge
Fast charge
Fleet management
Shop charger
Golf carts
Forklift
Pallet jacks
Personnel carriers
Maintenance shops
Rental fleets
