ADI ADP5080ACBZ-1-RL
Manufacturer No:
ADP5080ACBZ-1-RL
Manufacturer:
Package:
72-UFBGA, WLCSP
Description:

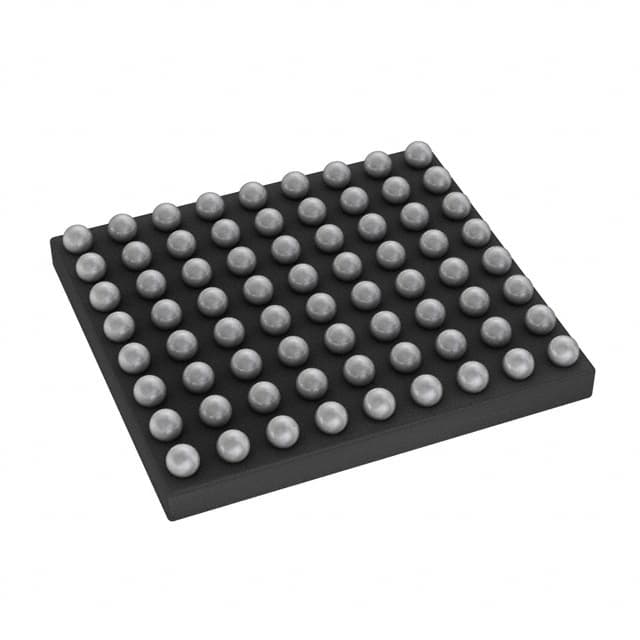

0.5mm PMIC ADP5080 72 Pin 7.2V 72-UFBGA, WLCSP
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
ADP5080ACBZ-1-RL information
ADI ADP5080ACBZ-1-RL technical specifications, attributes, parameters and parts with similar specifications to ADI ADP5080ACBZ-1-RL.
- Type
- Parameter
- Lifecycle Status
- PRODUCTION (Last Updated: 2 weeks ago)
- Factory Lead Time
- 8 Weeks
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 72-UFBGA, WLCSP
- Number of Pins
- 72
- Operating Temperature
- -20°C~85°C
- Packaging
- Tape & Reel (TR)
- JESD-609 Code
- e1
- Pbfree Code
- no
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 72
- Terminal Finish
- Tin/Silver/Copper (Sn/Ag/Cu)
- Additional Feature
- RESET THRESHOLD VOLTAGE IS 2.4V
- Voltage - Supply
- 4V~15V
- Terminal Position
- BOTTOM
- Terminal Form
- BALL
- Peak Reflow Temperature (Cel)
- 260
- Number of Functions
- 1
- Supply Voltage
- 7.2V
- Terminal Pitch
- 0.5mm
- Time@Peak Reflow Temperature-Max (s)
- 30
- Base Part Number
- ADP5080
- Number of Outputs
- 9
- Voltage - Output 1
- 1.2V
- Operating Supply Voltage
- 15V
- Supply Voltage-Min (Vsup)
- 4V
- Number of Channels
- 9
- Analog IC - Other Type
- POWER SUPPLY SUPPORT CIRCUIT
- Output Current
- 3A
- Adjustable Threshold
- YES
- Voltage - Output 2
- 3.3V
- Topology
- Step-Down (Buck) (6), Step-Up (Boost) (1), Linear (LDO) (3)
- Frequency - Switching
- 750KHz~2MHz
- Voltage - Output 3
- 1.8V
- w/Sequencer
- No
- Voltage/Current - Output 1
- 0.8V~1.2V 3A
- Voltage/Current - Output 2
- 1V~3.3V 1.15A
- Voltage/Current - Output 3
- 1.2V~1.8V 1.5A
- Length
- 4.46mm
- Height Seated (Max)
- 0.66mm
- RoHS Status
- RoHS Compliant
- Lead Free
- Contains Lead
Download datasheets and manufacturer documentation for ADI ADP5080ACBZ-1-RL.
ConflictMineralStatement:
ADP5080ACBZ-1-RL Description
ADP5080ACBZ-1-RL is a fully integrated, high-efficiency power solution for multicell lithium-ion battery applications. It is able to connect directly to the battery without preregulators, increasing the battery life of the system. It provides optimum performance for portable applications because the number of external components and PCB space required is minimized. The ADP5080ACBZ-1-RL is supplied in the 72-ball WLCSP 0.5 mm pitch package to save board space.
ADP5080ACBZ-1-RL Features
Wide input voltage range: 4.0 V to 15 V
High-efficiency architecture
Up to 2 MHz switching frequency
Supplied in the 72-ball WLCSP 0.5 mm pitch package
ADP5080ACBZ-1-RL Applications
DSLR cameras
Non-reflex (mirrorless) cameras
Portable instrumentation
User Guide
