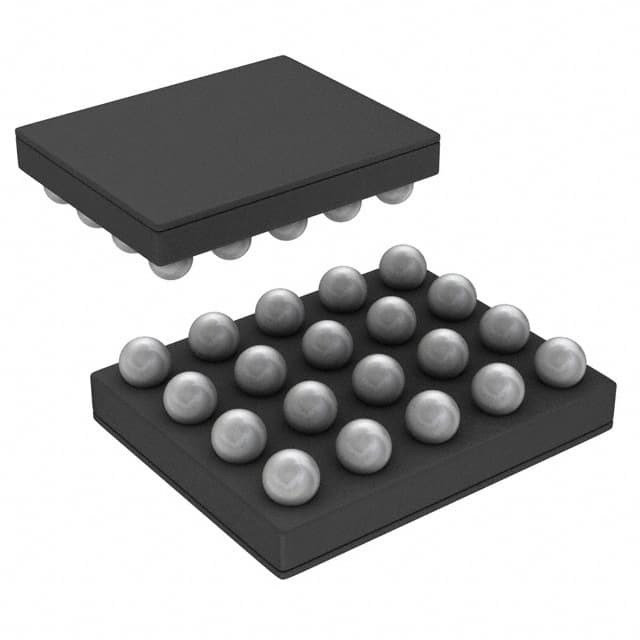

ADI ADP5061ACBZ-5-R7

Manufacturer No:

ADP5061ACBZ-5-R7

Manufacturer:

ADI

Package:

20-WFBGA, WLCSP

Description:

Constant - Programmable ADP5061 20-WFBGA, WLCSP Tape & Reel (TR) 5V 2.1A 20 Terminals 20 Pin

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ADP5061ACBZ-5-R7 information

ADI ADP5061ACBZ-5-R7 technical specifications, attributes, parameters and parts with similar specifications to ADI ADP5061ACBZ-5-R7.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 1 week ago)

Factory Lead Time
10 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
20-WFBGA, WLCSP

Number of Pins
20

Operating Temperature
-40°C~125°C TJ

Packaging
Tape & Reel (TR)

JESD-609 Code
e1

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
20

ECCN Code
EAR99

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Subcategory
Power Management Circuits

Technology
DMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
5V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
20

Qualification Status
Not Qualified

Power Supplies
5V

Supply Voltage-Min (Vsup)
4V

Number of Channels
1

Interface
I2C, USB

Max Supply Voltage
6.7V

Analog IC - Other Type
POWER SUPPLY MANAGEMENT CIRCUIT

Operating Supply Current
1.3A

Output Current
2.1A

Adjustable Threshold
YES

Nominal Input Voltage
6.7V

Battery Chemistry
Lithium-Ion

Number of Cells
1

Current - Charging
Constant - Programmable

Battery Pack Voltage
4.3V

Length
2.595mm

Height Seated (Max)
0.66mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for ADI ADP5061ACBZ-5-R7.

Datasheets:

analogdevicesinc-adp5061cbevalz-datasheets-2843.pdf

analogdevices-adp5061acbz5r7-datasheets-1151.pdf

analogdevices-adp5061acbz5r7-datasheets-1152.pdf

analogdevices-adp5061acbz5r7-datasheets-1153.pdf

ConflictMineralStatement:

analogdeviceslineartechnology-lt5400bhms8e8trpbf-conflictmineralstatement-8771.pdf

ADP5061ACBZ-5-R7 Overview

There is a package for Tape & Reel (TR) in which it can be found.We've included it in the 20-WFBGA, WLCSP package so that it's easier to use.Mounting type for the device is Surface Mount.It is recommended that the temperature be set to -40°C~125°C TJ in order to ensure reliable performance.In order to operate this device, an analog IC of POWER SUPPLY MANAGEMENT CIRCUIT must be used.The device requires Constant - Programmable current to charge.The related parts of the base part number ADP5061 can be found by following the order of the base part number.It contains a total of 20 terminations.As far as the battery pack is concerned, it is 4.3V.It is equipped with 20 pins.It requires pins 20 to function.The number of available channels is 1.It should be able to run off a battery of 5V.In order for the device to operate properly, the supply voltage should not exceed 6.7V.In this case, the output current of the device is set to 2.1A.As far as this device is concerned, it belongs to the subcategory Power Management Circuits.Amounting is in line with Surface Mount.The part's power supply is set to a value of 5V.Its supply carries 1.3A current.It is important to keep the power supply voltage (Vsup) above 4V so that normal operation can take place.
