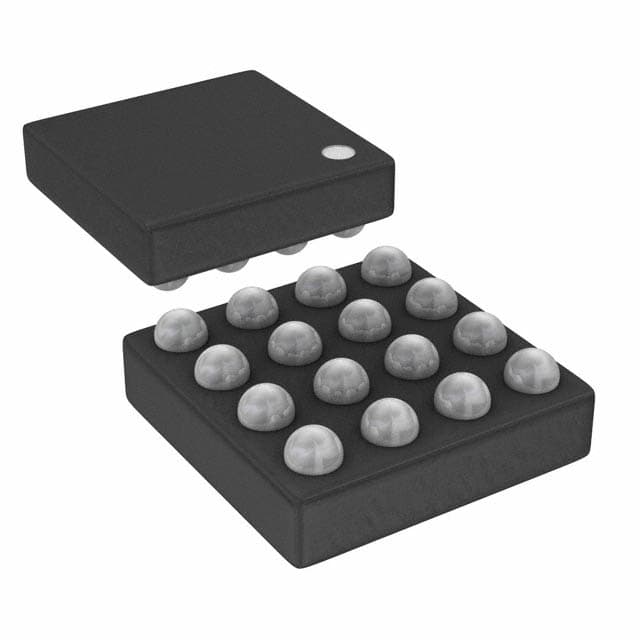

ADI ADP5033ACBZ-2-R7

Manufacturer No:

ADP5033ACBZ-2-R7

Manufacturer:

ADI

Package:

16-WFBGA, WLCSP

Description:

0.5mm Tin PMIC ADP5033 16 Pin 16-WFBGA, WLCSP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ADP5033ACBZ-2-R7 information

ADI ADP5033ACBZ-2-R7 technical specifications, attributes, parameters and parts with similar specifications to ADI ADP5033ACBZ-2-R7.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 1 week ago)

Factory Lead Time
10 Weeks

Contact Plating
Tin

Mounting Type
Surface Mount

Package / Case
16-WFBGA, WLCSP

Surface Mount
YES

Number of Pins
16

Operating Temperature
-40°C~125°C

Packaging
Tape & Reel (TR)

JESD-609 Code
e1

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

ECCN Code
EAR99

Additional Feature
ALSO OPERATES AS LDO REGULATOR, ALSO AVAILABLE VOUT=2.8

Subcategory
Switching Regulator or Controllers

Technology
BICMOS

Voltage - Supply
1.7V~5.5V

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.5mm

Base Part Number
ADP5033

Pin Count
16

Number of Outputs
4

Output Voltage
1.8V

Max Output Current
800A

Voltage - Output 1
1.8V

Operating Supply Voltage
5.5V

Input Voltage-Nom
3.6V

Interface
GPIO

Analog IC - Other Type
SWITCHING REGULATOR

Voltage - Output 2
2.8V

Topology
Step-Down (Buck) Synchronous (2), Linear (LDO) (2)

Min Input Voltage
2.3V

Control Mode
CURRENT-MODE

Frequency - Switching
3MHz

Max Input Voltage
5.5V

Control Technique
PULSE WIDTH MODULATION

Current - Output 1
800mA

Voltage - Output 3
2.8V

Current - Output 2
800mA

w/Sequencer
No

Voltage/Current - Output 1
1.8V 800mA

Current - Output 3
300mA

Download datasheets and manufacturer documentation for ADI ADP5033ACBZ-2-R7.

ADP5033ACBZ-2-R7 Description

ADP5033ACBZ-2-R7 is a type of dual 3 MHz, 800 mA buck regulator with two 300 mA LDOs, incorporating two high-performance buck regulators and two low dropouts (LDO) regulators. It is supplied in a tiny, 16-ball, 2 mm ×2 mm WLCSP package to meet the board space requirements. Tiny multilayer external components and small board space can be achieved based on the high switching frequency of the buck regulators. The battery life of portable devices can be extended due to the low quiescent current, low dropout voltage, and wide input voltage range.

ADP5033ACBZ-2-R7 Features

High switching frequency

Supplied in a small, 2 mm ×2 mm WLCSP package

Low quiescent current

Low dropout voltage

Wide input voltage range

ADP5033ACBZ-2-R7 Applications

Power for processors, ASICS, FPGAs, and RF chipsets

Portable instrumentation and medical devices

Space constrained devices
