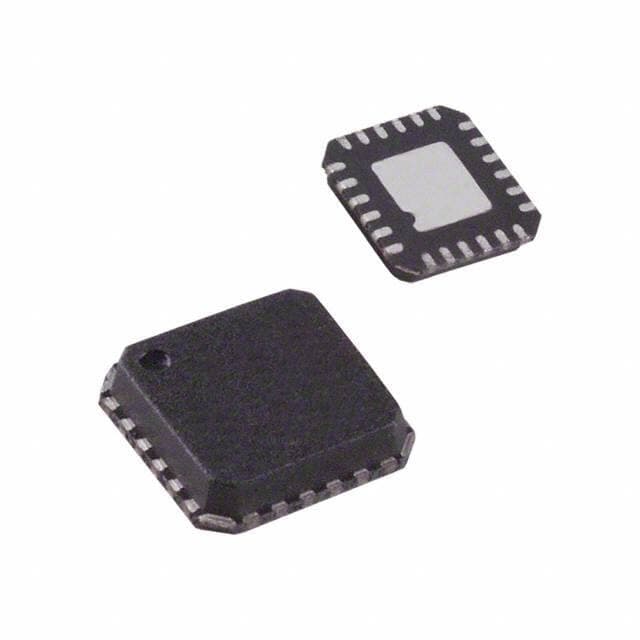

ONSEMI ADP3808JCPZ-RL

Manufacturer No:

ADP3808JCPZ-RL

Manufacturer:

ONSEMI

Package:

24-VFQFN Exposed Pad, CSP

Description:

Constant - Programmable ADP3808 24-VFQFN Exposed Pad, CSP Tape & Reel (TR) 24 Terminals 24 Pin

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ADP3808JCPZ-RL information

ONSEMI ADP3808JCPZ-RL technical specifications, attributes, parameters and parts with similar specifications to ONSEMI ADP3808JCPZ-RL.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
24-VFQFN Exposed Pad, CSP

Number of Pins
24

Operating Temperature
0°C~100°C TA

Packaging
Tape & Reel (TR)

Published
2007

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
24

ECCN Code
EAR99

Terminal Finish
TIN

HTS Code
8542.39.00.01

Terminal Position
QUAD

Terminal Form
NO LEAD

Number of Functions
1

Terminal Pitch
0.5mm

Reach Compliance Code
unknown

Base Part Number
ADP3808

Pin Count
24

Qualification Status
Not Qualified

Input Voltage-Nom
20V

Analog IC - Other Type
BATTERY CHARGE CONTROLLER

Input Voltage (Max)
22V

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
SINGLE

Switching Frequency-Max
1000kHz

Battery Chemistry
Lithium-Ion

Number of Cells
3 ~ 4

Voltage - Supply (Max)
22V

Current - Charging
Constant - Programmable

Battery Pack Voltage
18V

Length
4mm

Height Seated (Max)
1mm

Width
4mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ONSEMI ADP3808JCPZ-RL.

ReachStatement:

onsemiconductor-6svp22m-reachstatement-6839.pdf

ADP3808JCPZ-RL Overview

There is a package named Tape & Reel (TR) that contains it.The product comes in the package of a 24-VFQFN Exposed Pad, CSP.It appears that the device's mounting type is Surface Mount.It is best to set the temperature to 0°C~100°C TA.The device relies on an analog IC called BATTERY CHARGE CONTROLLER to operate.To charge the device, there is a requirement for Constant - Programmable current.With the base part number ADP3808, it is possible to find related parts.It is possible to find a total of 24 terminations.A battery pack is going to have a voltage of 18V.With 24 pins on it, it has a very simple design.To operate the product, it is necessary that 24 pins be inserted into the device.In general, it is recommended to use devices with 22V maximum supply voltages.Aligning it with Surface Mount is required for mounting.20V is the input voltage for the device.Voltages below 10V volts are minimal.The part's switching frequency is at most 1000kHz.22V is its maximum input voltage.

ADP3808JCPZ-RL Features

Battery pack voltage of 18V
24-VFQFN Exposed Pad, CSP package

ADP3808JCPZ-RL Applications

There are a lot of ON Semiconductor
ADP3808JCPZ-RL Battery Chargers ICs applications.

Fleet management
Shop charger
Golf carts
Forklift
Pallet jacks
Personnel carriers
Maintenance shops
Rental fleets
Truck dealers
Floor scrubber
