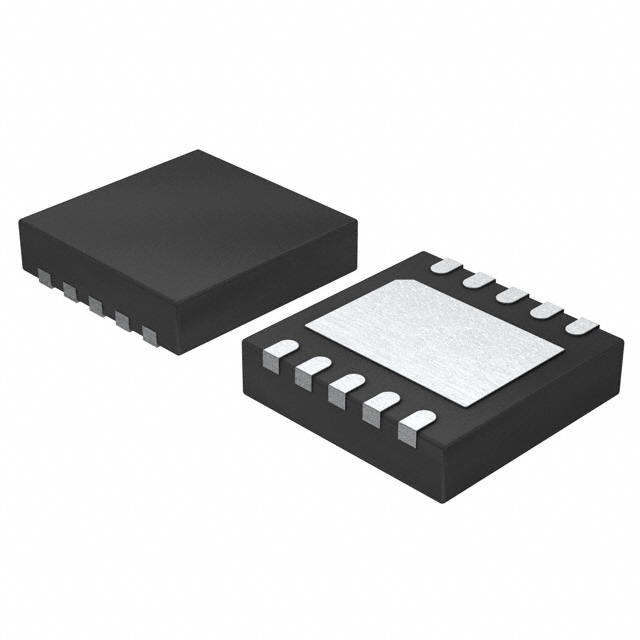

ADI ADP2140ACPZ1833R7

Manufacturer No:

ADP2140ACPZ1833R7

Manufacturer:

ADI

Package:

10-VFDFN Exposed Pad, CSP

Description:

Fixed 0.5mm Tin PMIC ADP2140 10 Pin 10-VFDFN Exposed Pad, CSP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ADP2140ACPZ1833R7 information

ADI ADP2140ACPZ1833R7 technical specifications, attributes, parameters and parts with similar specifications to ADI ADP2140ACPZ1833R7.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 3 weeks ago)

Factory Lead Time
8 Weeks

Contact Plating
Tin

Mounting Type
Surface Mount

Package / Case
10-VFDFN Exposed Pad, CSP

Surface Mount
YES

Number of Pins
10

Operating Temperature
-40°C~125°C

Packaging
Tape & Reel (TR)

JESD-609 Code
e3

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
10

ECCN Code
EAR99

Additional Feature
ALSO OPERATES IN ADJUSTABLE MODE FROM 0.6 TO 5.5V

Subcategory
Switching Regulator or Controllers

Voltage - Supply
1.65V~5.5V

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
ADP2140

Number of Outputs
2

Output Voltage
3.3V

Output Type
Fixed

Max Output Current
300mA

Voltage - Output 1
1.8V

Input Voltage-Nom
3.6V

Analog IC - Other Type
SWITCHING REGULATOR

Operating Supply Current
30?A

Nominal Supply Current
30?A

Output Current
300mA

Max Supply Current
220?A

Max Output Voltage
3.3V

Voltage - Output 2
1.5V

Topology
Step-Down (Buck) Synchronous (1), Linear (LDO) (1)

Min Input Voltage
2.3V

Control Mode
CURRENT-MODE

Frequency - Switching
3MHz

Max Input Voltage
5.5V

Control Technique
PULSE WIDTH MODULATION

Current - Output 1
600mA

Min Output Voltage
1.2V

Power Supply Rejection Ratio (PSRR)
65dB

Current - Output 2
300mA

Download datasheets and manufacturer documentation for ADI ADP2140ACPZ1833R7.

Datasheets:

analogdevicesinc-adp2140acpz18812r7-datasheets-2899.pdf

ConflictMineralStatement:

analogdeviceslineartechnology-lt5400bhms8e8trpbf-conflictmineralstatement-8771.pdf

ADP2140ACPZ1833R7 Overview

10-VFDFN Exposed Pad, CSP packaging is voltage regulators' for voltage regulators' transportation.The shipment of package Tape & Reel (TR) has been completed.There are total of 2 outputs that are supported by voltage regulator.To prevent malfunctions, the operating temperature should be set to -40°C~125°C.Using search ADP2140 will help you find more pin-to-pin solutions.In this switching regulator, you'll find 10 terminals.10 pins are the first pins on the switching regulator's pinout.Relow soldering is done by allowing the temperature to peak at 260 during the procedure.A voltage of 30?A is needed to operate this voltage regulator.A 10 pattern is used for this voltage regulator's pin arrangement.It can be used in many different applications due to its output voltage of 3.3V.A voltage of 2.3V is required for this regulator.It is possible to use 5.5V voltage with this voltage regulator.An output type Fixed is used for this regulator controller.The DC DC Switching Regulator should output 300mA at the moment.Maximum current 300mA will be produced by it.In the industry, Switching Regulator or Controllerss like the voltage regulator DC to DC play an important role.As with ALSO OPERATES IN ADJUSTABLE MODE FROM 0.6 TO 5.5V, ICs specialiALSO OPERATES IN ADJUSTABLE MODE FROM 0.6 TO 5.5Ve in certain areas.There is a voltage limit of 1.2V on the output of this controller.The maximum voltage that can be output by this voltage regulator is 3.3V voltage.

ADP2140ACPZ1833R7 Features

2 outputs
Operating Temperature: -40°C~125°C
Peak Reflow Temperature: 260
ALSO OPERATES IN ADJUSTABLE MODE FROM 0.6 TO 5.5V

ADP2140ACPZ1833R7 Applications

There are a lot of Analog Devices Inc.
ADP2140ACPZ1833R7 Linear Regulator Controllers applications.

Low-dropout SMPS post regulator
High-current, current-limited switch
Dual/Triple Power Supplies
Desknotes and Notebooks
Graphic Cards
Ultra-Low-Dropout
Voltage Regulators
Low-Voltage DSP Power Supplies
Microcontroller Power Supplies
Motherboards
