ADI ADP197ACBZ-R7

Manufacturer No:

ADP197ACBZ-R7

Manufacturer:

ADI

Package:

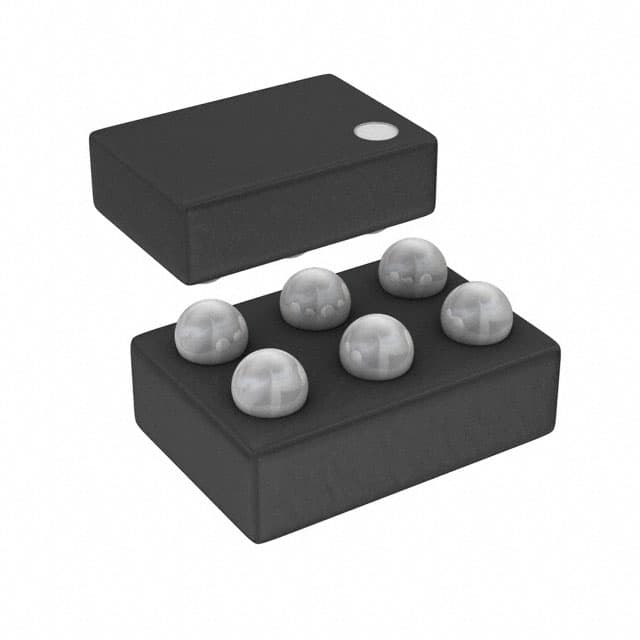

6-WFBGA, WLCSP

Description:

N-Channel 0.5mm PMIC ADP197 6 Pin 3.4V 6-WFBGA, WLCSP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ADP197ACBZ-R7 information

ADI ADP197ACBZ-R7 technical specifications, attributes, parameters and parts with similar specifications to ADI ADP197ACBZ-R7.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 2 weeks ago)

Factory Lead Time
16 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
6-WFBGA, WLCSP

Number of Pins
6

Operating Temperature
-40°C~105°C TJ

Packaging
Cut Tape (CT)

JESD-609 Code
e1

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
6

ECCN Code
EAR99

Resistance
12mOhm

Terminal Finish
TIN SILVER COPPER

Max Power Dissipation
24μW

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.4V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
6

Number of Outputs
1

Output Type
N-Channel

Max Output Current
3A

Operating Supply Voltage
5.5V

Number of Channels
1

Interface
On/Off

Analog IC - Other Type
POWER SUPPLY SUPPORT CIRCUIT

Operating Supply Current
18μA

Output Configuration
High Side

Power Dissipation
24μW

Output Current
3A

Voltage - Supply (Vcc/Vdd)
Not Required

Adjustable Threshold
NO

Input Type
Non-Inverting

Switch Type
General Purpose

Min Input Voltage
1.8V

Max Input Voltage
5.5V

Nominal Input Voltage
5.5V

Ratio - Input:Output
1:1

Voltage - Load
1.8V~5.5V

Fault Protection
Over Temperature

Rds On (Typ)
12m Ω

Download datasheets and manufacturer documentation for ADI ADP197ACBZ-R7.

Datasheets:

analogdevicesinc-adp197acbz01r7-datasheets-1541.pdf

analogdevices-adp197acbzr7-datasheets-7396.pdf

analogdevices-adp197acbzr7-datasheets-7397.pdf

analogdevices-adp197acbzr7-datasheets-7398.pdf

analogdevices-adp197acbzr7-datasheets-7399.pdf

ConflictMineralStatement:

analogdeviceslineartechnology-lt5400bhms8e8trpbf-conflictmineralstatement-8771.pdf

Product Description:

The ADP197ACBZ-R7 is a surface-mount, high-side power distribution switch from Analog Devices Inc. This adjustable threshold power supply support circuit is designed to provide a reliable and efficient power distribution solution for various applications. With a nominal input voltage of 5.5V and an output current of up to 3A, this device is suitable for powering high-current loads.

Features:

Slew rate controlled for smooth output transitions
Over temperature fault protection for reliable operation
Low power dissipation of 24μW
Operating temperature range of -40°C to 105°C
Surface-mount package with 6 pins
High-side output configuration

Applications:

Primary applications: Power supply support circuits for high-current loads, such as LED drivers, motor control systems, and power supplies
Secondary applications: General-purpose power switching, load switching, and power distribution in various industries, including automotive, industrial, and consumer electronics

Alternative Parts:

ADP197 (base part number)
Other power distribution switches and load drivers from Analog Devices Inc.

Embedded Modules:

This component is used in various embedded systems, including power supply units, motor control systems, and LED drivers.

FAQs:

Q: What is the maximum input voltage for the ADP197ACBZ-R7? A: The maximum input voltage is 5.5V.

Q: What is the maximum output current for the ADP197ACBZ-R7? A: The maximum output current is 3A.

Q: What is the operating temperature range for the ADP197ACBZ-R7? A: The operating temperature range is -40°C to 105°C.

Q: Is the ADP197ACBZ-R7 RoHS compliant? A: Yes, the ADP197ACBZ-R7 is ROHS3 compliant.

Q: What is the package type for the ADP197ACBZ-R7? A: The package type is a 6-WFBGA, WLCSP with a cut tape (CT) packaging.

Q: What is the lead time for the ADP197ACBZ-R7? A: The lead time for the ADP197ACBZ-R7 is 16 weeks.

Q: Is the ADP197ACBZ-R7 radiation hardened? A: No, the ADP197ACBZ-R7 is not radiation hardened.

Q: What is the ECCN code for the ADP197ACBZ-R7? A: The ECCN code for the ADP197ACBZ-R7 is EAR99.
